SIR-320ST3F

Infrared Emitters FLAT SIDE IR EMITTER

product image

SIR-320ST3F Picture
SeekIC No. : 0019022 Detail

SIR-320ST3F: Infrared Emitters FLAT SIDE IR EMITTER

floor Price/Ceiling Price

US $ .21~.67 / Piece | Get Latest Price
Part Number:
SIR-320ST3F
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~500
  • Unit Price
  • $.67
  • $.39
  • $.23
  • $.21
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Wavelength : 940 nm Beam Angle : +/- 18 deg
Radiant Intensity : 5.6 mW/sr Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 25 C Package / Case : 3.8 mm x 5.2 mm
Packaging : Bulk

Description

Maximum Operating Temperature : + 85 C
Packaging : Bulk
Wavelength : 940 nm
Minimum Operating Temperature : - 25 C
Radiant Intensity : 5.6 mW/sr
Package / Case : 3.8 mm x 5.2 mm
Beam Angle : +/- 18 deg


Features:

1) Compact (3.1 mm).
2) High efficiency, high output PO = 9.0 mW (IF = 50 mA).
3) Wide radiation angle q = ±18°
4) Emission spectrum well suited to silicon detectors (P = 940 nm).
5) Good current-optical output linearity.
6) Long life, high reliability.
7) Low cost, clear epoxy resin package.



Application

Optical control equipment
Light source for remote control devices

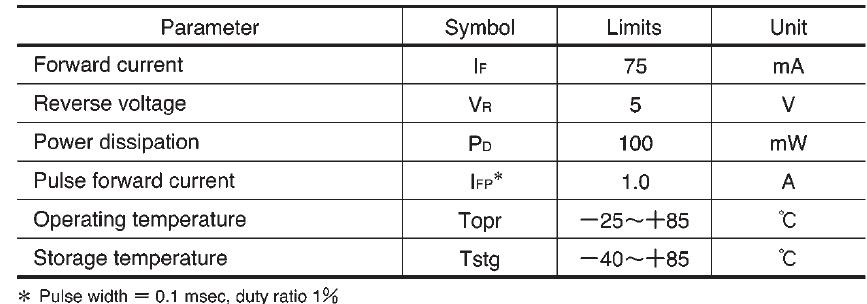

Specifications

  Connection Diagram


Description

The SIR-320ST3F is a GaAs infrared light emitting diode housed in clear plastic. This device has a high luminous efficiency and a 940 nm spectrum suitable for silicon detectors. It is small and at the same time has a wide radiation angle, making it ideal for compact optical control equipment.
