SH7145F-ZTAT

Features: • Central processing unit with an internal 32-bit RISC (Reduced Instruction Set Computer) architecture Instruction length: 16-bit fixed length for improved code efficiency Load-store architecture (basic operations are executed between registers) Sixteen 32-b...

product image

SH7145F-ZTAT Picture
See larger image
SeekIC No. : 004489618 Detail

SH7145F-ZTAT: Features: • Central processing unit with an internal 32-bit RISC (Reduced Instruction Set Computer) architecture Instruction length: 16-bit fixed length for improved code efficiency...

SH7145F-ZTAT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SH7145F-ZTAT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Central processing unit with an internal 32-bit RISC (Reduced Instruction Set Computer) architecture
 Instruction length: 16-bit fixed length for improved code efficiency
 Load-store architecture (basic operations are executed between registers)
 Sixteen 32-bit general registers
 Five-stage pipeline
 On-chip multiplier: multiplication operations (32 bits * 32 bits 64 bits) executed in two to four cycles
 C language-oriented 62 basic instructions
• Various peripheral functions
 Direct memory access controller (DMAC)
 Data transfer controller (DTC)


Pinout

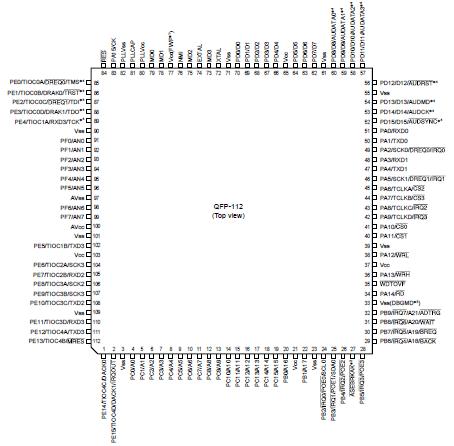

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Power supply voltage
VCC
0.3 to +4.3
V
Input voltage All pins other than analog input pins
Vin
0.3 to VCC +0.3
V
Analog input pins
Vin
0.3 to AVCC +0.3
V
Analog supply voltage
AVCC
0.3 to +4.3
V
Analog reference voltage (Only in SH7145)
VAref
0.3 to AVCC +0.3
V
Analog input voltage
VAN
0.3 to AVCC +0.3
V
Operating temperature (except programming or
erasing flash memory)		 Regular specifications
Topr
20 to +75
°C
Wide range specifications
40 to +85
°C
Operating temperature
(programming or erasing flash memory)
TWEopr
20 to +75
°C
Storage temperature
Tstg
55 to +125
°C



Description

The UBC has the following registers. For details on register addresses and register states during each processing, refer to section 25, List of Registers.
• User break address register H (UBARH)
• User break address register L (UBARL)
• User break address mask register H (UBAMRH)
• User break address mask register L (UBAMRL)
• User break bus cycle register (UBBR)
• User break control register (UBCR)
