SGM3157

Features: ` Voltage Operation : 1. 8 V to 5. 5 V` On-Resistance: 4.5 (typ) at 5.0V` Fast Switching Time tON 20 ns tOFF 15 ns` High Bandwidth: 300 MHz` High Off-Isolation: 51dB at 10MHz` Rail-to-Rail Operation` TTL/CMOS Compatible` Break-Before-Make Switching` Extended Industrial Temperature Range:...

product image

SGM3157 Picture
See larger image
SeekIC No. : 004489448 Detail

SGM3157: Features: ` Voltage Operation : 1. 8 V to 5. 5 V` On-Resistance: 4.5 (typ) at 5.0V` Fast Switching Time tON 20 ns tOFF 15 ns` High Bandwidth: 300 MHz` High Off-Isolation: 51dB at 10MHz` Rail-to-Rail...

SGM3157 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SGM3157
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Voltage Operation : 1. 8 V to 5. 5 V
` On-Resistance: 4.5 (typ) at 5.0V
` Fast Switching Time tON 20 ns tOFF 15 ns
` High Bandwidth: 300 MHz
` High Off-Isolation: 51dB at 10MHz
` Rail-to-Rail Operation
` TTL/CMOS Compatible
` Break-Before-Make Switching
` Extended Industrial Temperature Range:
40°C to 85°C
` Lead (Pb) Free SC70-6 Package


Application

Portable Instrumentation
Battery-Operated Equipment
Computer Peripherals
Cell Phones
PDAs
MP3s


Pinout

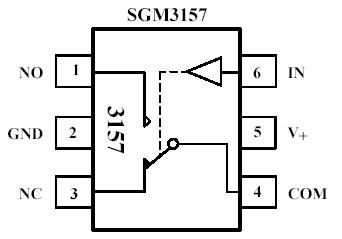

Connection Diagram


Specifications

V+ , IN to GND.....................................................- 0.3V to +6V
Analog, Digital voltage range(1)............. - 0.3V to (V+ + 0.3V)
Continuous Current NO, NC, or COM..........................±200mA
Peak Current NO, NC, or COM....................................±300mA
Operating Temperature Range....................- 40°C to +85°C
Junction Temperature..............................................   +150°C
Storage Temperature................................- 65°C to +150°C
Lead Temperature (soldering, 10s)...........................+260°C
ESD(HBM)..................................................................2000V


Description

The SGM3157 is a single, bidirectional, single-pole/double- throw (SPDT) CMOS analog switches designed to operate from a single +1.8V to +5.5V supply. It features high-bandwidth (300MHz) and low ON-resistance (4.5 typ), Targeted applications for audio switching.

SGM3157 features guaranteed on-resistance matching (0.3 max) between switches and guaranteed on-resistance flatness over the signal range (2.3 TYP). This ensures excellent linearity and low distortion when switching audio signals.

SGM3157 is available in a SC70-6 package.
