SGM3005

Features: `Low Voltage Operation : 1. 8 V to 5. 5 V`Low On-Resistance: 0. 5(TYP)`Low On-Resistance Flatness`3 dB Bandwidth: 30 MHz`Fast Switching Time tON 16 ns tOFF 15 ns`Rail-to-Rail Operation`Typical Power Consumption (<0.01 µW)`TTL/CMOS Compatible`Microsize PackageApplication·Batter...

product image

SGM3005 Picture
See larger image
SeekIC No. : 004489446 Detail

SGM3005: Features: `Low Voltage Operation : 1. 8 V to 5. 5 V`Low On-Resistance: 0. 5(TYP)`Low On-Resistance Flatness`3 dB Bandwidth: 30 MHz`Fast Switching Time tON 16 ns tOFF 15 ns`Rail-to-Rail Operation`T...

SGM3005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SGM3005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low Voltage Operation : 1. 8 V to 5. 5 V
`Low On-Resistance: 0. 5(TYP)
`Low On-Resistance Flatness
`3 dB Bandwidth: 30 MHz
`Fast Switching Time
tON 16 ns
tOFF 15 ns
`Rail-to-Rail Operation
`Typical Power Consumption (<0.01 µW)
`TTL/CMOS Compatible
`Microsize Package


Application

·Battery powered, Handheld, and Portable Equipments Cellular/mobile Phones Laptops, Notebooks, Palmtops
·Communication Systems
·Sample-and-Hold Circuits
·Audio Signal Routing
·Audio and Video Switching
·Portable Test and Measurement
·Medical Equipment

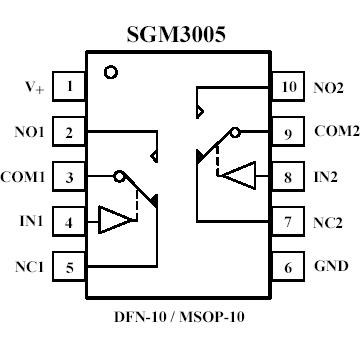

Pinout

Connection Diagram


Specifications

V+ to GND....................................................................- 0.3V to +6V
Analog, Digital voltage range(1)........................ - 0.3V to V+ + 0.3V
Continuous Current NO, NC, or COM..................................±300mA
Peak Current NO, NC, or COM............................................±500mA
Operating Temperature Range..........................- 40°C to +125°C
Junction Temperature.........................................................+150°C
Storage Temperature........................................- 65°C to +150°C
Lead Temperature (soldering, 10s)....................................+300°C
ESD........................................................................................2000V


Description

The SGM3005 is a dual, low ON-resistance, low voltage, bidirectional, single-pole/double-throw (SPDT) CMOS analog switches designed to operate from a single +1.8V to +5.5V supply. Targeted applications include battery powered equipment that benefit from low RON (0.5Ω) and fast switching speeds (tON = 16 ns, tOFF = 15 ns).

The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals.The SGM3005 is a committed dual single-pole/double -throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer.

SGM3005 is available in a MSOP-10 and DFN-10 packages.
