SD1407: Transistors RF Bipolar Power RF Transistor

SD1407 Data Sheet

US $ 26.4~39.6 / Piece | Get Latest Price

Part Number:: SD1407
Mfg:: Advanced Semiconductor, Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50

Unit Price
$39.6
$33
$29.7
$26.4

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Maximum Operating Frequency :	30 MHz	Collector- Emitter Voltage VCEO Max :	35 V
Emitter- Base Voltage VEBO :	4 V	Continuous Collector Current :	20 A
Power Dissipation :	270 W	Package / Case :	SOT-123
Packaging :	Tray

Description

Configuration :
Maximum DC Collector Current :
Collector- Emitter Voltage VCEO Max : 35 V
Emitter- Base Voltage VEBO : 4 V
Packaging : Tray
Power Dissipation : 270 W
Maximum Operating Frequency : 30 MHz
Continuous Collector Current : 20 A
Package / Case : SOT-123

Application

30 MHz
28 VOLTS
IMD -30 dB
COMMON EMITTER
GOLD METALLIZATION
P_OUT= 125 W MIN. WITH 15 dB GAIN

Pinout

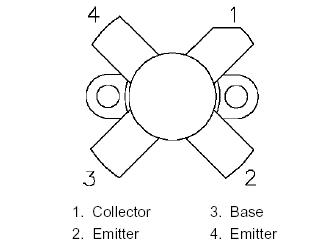

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CBO	Collector-Base Voltage	65	V
V_CEO	Collector-Emitter Voltage	36	V
V_EBO	Emitter-Base Voltage	4.0	V
I_C	Device Current	20	A
P_DISS	Power Dissipation	270	W
T_J	Junction Temperature	+200	^°C
T_STG	Storage Temperature	- 65 to +150	^°C

Description

The SD1407 is a 28 V epitaxial silicon NPN planar transistor designed primarily for SSB communications. This device utilizes state-of-the-art diffused emitter ballasting for improved ruggedness and reliability.
