SD1405: Transistors RF Bipolar Power NPN 12.5V 30MHz

SD1405 Data Sheet

Get Latest Price

Part Number:: SD1405
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Configuration :	Single Dual Source	Collector- Emitter Voltage VCEO Max :	18 V
Emitter- Base Voltage VEBO :	4 V	Continuous Collector Current :	20 A
Maximum DC Collector Current :	20 A	Power Dissipation :	270 W
Package / Case :	M174	Packaging :	Bulk

Description

Maximum Operating Frequency :
Emitter- Base Voltage VEBO : 4 V
Power Dissipation : 270 W
Packaging : Bulk
Collector- Emitter Voltage VCEO Max : 18 V
Continuous Collector Current : 20 A
Maximum DC Collector Current : 20 A
Package / Case : M174
Configuration : Single Dual Source

Application

30 MHz
12.5 VOLTS
COMMON EMITTER
IMD -32 dB
GOLD METALLIZATION
P_OUT= 75 W MIN. WITH 13 dB GAIN

Pinout

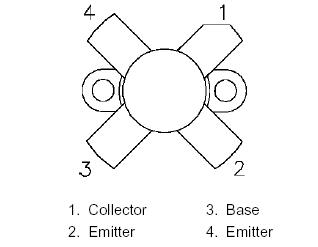

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CBO	Collector-Base Voltage	36	V
V_CEO	Collector-Emitter Voltage	18	V
V_EBO	Emitter-Base Voltage	4.0	V
I_C	Device Current	20	A
P_DISS	Power Dissipation	270	W
T_J	Junction Temperature	+200	^°C
T_STG	Storage Temperature	- 65 to +150	^°C

Description

The SD1405 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for HF communications. This device utilizes diffused emitter resistors to achieve infinte VSWR under rated operating conditions.

Parameters:

Technical/Catalog Information	SD1405
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Current - Collector (Ic) (Max)	20A
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 5A, 5V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	18V
Gain	13dB
Power - Max	270W
Compression Point (P1dB)	-
Package / Case	M174
Packaging	Bulk
Drawing Number	*
Mounting Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD1405 SD1405 497 5457 ND 4975457ND 497-5457
