Features:

An input voltage can be boosted double/triple/quadruple to negative potential.
Input voltages: 2.4 to 5.5V (quadruple boosting), 2.4 to 7.3V (triple boosting), 2.4 to 11.0V (double boosting)
Excellent vol tage conversion efficiency: 95% (Typ.)
Large output current: 20 mA (Max.) during quadruple boosting
Built-in voltage regulator (for stable voltage output)
Built-in reference voltage source for accurate regulation: 1.5 ±0.05V (CT0)
Regulator output voltage temperature gradient function: 0.04, 0.15, 0.35, 0.55%/°C
Low current consumption: 130 A (Typ.)
Low standby current: 5.0 A (Max.)
Built-in oscillator circuit
5/6-time voltage boosting in negative potential by serial connection
Package: SCI7654M0A SSOP2-16pin (plastic), SCI7654C0A DIP-16pin (plastic)



Pinout

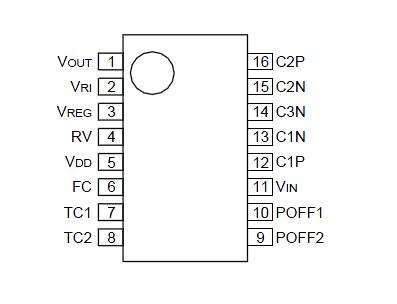

  Connection Diagram


Specifications

Rating
Symbol
Min.
Max.
Unit
Remark
Input Power Voltage
VIN
-26.0/N
VDD +0.3
V
N=Boosting time; at VIN pin
Input Pin Voltage
VI
VIN -0.3
VDD +0.3
V
POFF1, POFF2 TC1, TC2, FC pins
Output Pin Voltage 1
V0C1
VIN -0.3
VDD +0.3
V
At C1P and C2P pins
Output Pin Voltage 2
V0C2
2 *VIN -0.3
VIN +0.3
V
At C1N pin
Output Pin Voltage 3
V0C3
3 *VIN -0.3
2 *VIN +0.3
V
At C2N pin
Output Pin Voltage 4
V0C4
4 *VIN -0.3
3 *VIN +0.3
V
At C3N pin
Regulator Input Power Voltage
VRI
N* VIN -0.3
VDD +0.3
V
N=Boosting time; at VRI pin
Regulator Input Pin Voltage
VRV
N* VIN -0.3
VDD +0.3
V
N=Boosting time; at RV pin
Output Voltage
V0
N *VIN -0.3
VDD +0.3
V
N=Boosting time; at VOUT and VREG pins
Input Current
IIN
-
80
mA
At VIN pin
Output Current
IOUT
-
N4: 20
N>4: 80/N
mA
N=Boosting time; at VOUTand VREG pins
Allowable Loss
Pd
-
210
mW
-
Operating Temperature
Topr
-30
85
°C
-
Storage Temperature
Tstg
-55
150
°C
-
Soldering Temperature and Time
Tsol
-
260•10
°C.S
Temperature at leads



Description

The SCI7654C is a highly efficient, but low power-consumption DC-to-DC converter based on the advanced CMOS technologies.SCI7654C can generate an output voltage double/triple/quadruple times higher than the input (in negative direction) if 4/3/2 external capacitors are attached.

With a built-in voltage regulator, the SCI7654C can provide a stable output by setting the DC/DC output to any voltage via two external resistors. This is optimum to the LCD panel power supply as the stable output can have the negative temperature gradient required for an LCD panel.
