Features: • Phase Locked Output Frequency Control• Intrinsically Low Jitter Crystal Oscillator• CML Outputs• Dual 8 kHz References• LOR & LOL Alarm.• Force Free Run Function• Automatic Free Run Operation on Loss of Both References A & B• Inpu...
SCG4600: Features: • Phase Locked Output Frequency Control• Intrinsically Low Jitter Crystal Oscillator• CML Outputs• Dual 8 kHz References• LOR & LOL Alarm.• Force Fr...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Minimum | Nominal | Maximum | Units | Notes |
VCC | Power Supply Voltage | -0.5 | - | +4.0 | Volts | 1.0 |
VI | Input Voltage | -0.5 | - | +5.5 | Volts | 1.0 |
Ts | Storage Temperature | -40.0 | - | +85 | 1.0 |
The SCG4600 is a digital phase locked loop generating CML outputs from an intrinsically low jitter voltage controlled crystal oscillator.
The SCG4600 can lock to one of two external 8 kHz references, which is selectable using the SELAB input select pin. The unit has an acquisition time of about 1.5 seconds and it is tolerant of different reference duty cycles.
The SCG4600 includes an alarm output that indicates deviations from normal operation. If a Lossof- Reference (LOR) or Loss-of-Lock (LOL) is detected the alarm with indicate the need for a reference rearrangement. If both references A and B are absent the module will enter Free Run operation. The FRstatus pin will indicate that the module is in Free Run operation. Frequency stability during Free Run operation is guaranteed to ±20 PPM. Additionally the Free Run mode may be entered manually.

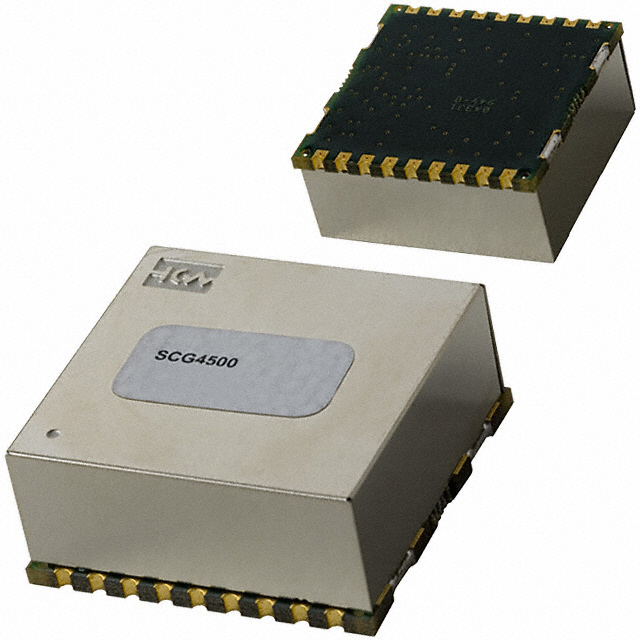

The package dimensions are 1.05" x 1.03" x .375" (maximum) on a 4 layer FR4 board with J-Leads. Parts are assembled using high temperature solder to withstand 180°C surface mount reflow processes.
