SAB 80C517

Features:

Versions for 12 MHz and 16 MHz operating frequency
8 K *8 ROM (SAB 80C517 only)
256 *8 on-chip RAM
Superset of SAB 80C51 architecture: 1s instruction cycle time at 12 MHz 750 ns instruction cycle time at 16 MHz 256 directly addressable bits  Boolean processor 64 Kbyte external data and program memory addressing
Four 16-bit timer/counters
Powerful 16-bit compare/capture unit (CCU) with up to 21 high-speed or PWM output channels and 5 capture inputs
Versatile "fail-safe" provisions
Fast 32-bit division, 16-bit 2 multiplication, 32-bit normalize and shift by peripheral MUL/DIV unit (MDU)
Eight data pointers for external memory addressing
Fourteen interrupt vectors, four priority levels selectable
8-bit A/D converter with 12 multiplexed inputs and programmable ref. voltages
Two full duplex serial interfaces
Fully upward compatible with SAB 80C515
Extended power saving modes
Nine ports: 56 I/O lines, 12 input lines
 Two temperature ranges available:0 to 70   40 to 85
Plastic packages: P-LCC-84, P-MQFP-100-2

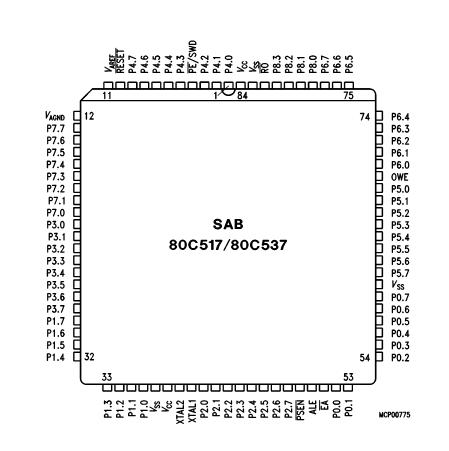

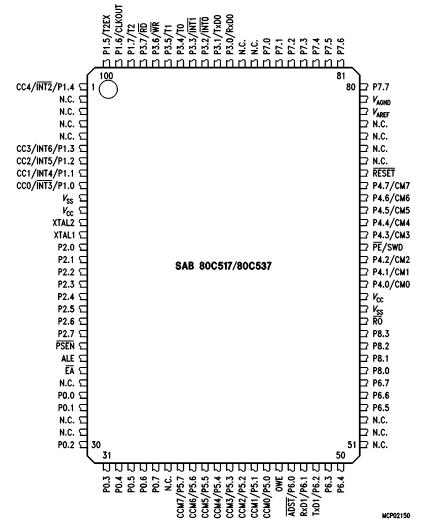

Pinout




Specifications

Ambient temperature under bias
SAB 80C517/83C537.....................................................................................................0 to 70
SAB 80C517/83C537-T40/85.................................................................................... 40 to 85
Storage temperature T_ST....................................................................................... 65 to 150
Voltage on V_CC pins with respect to ground (V_SS) ............................................ 0.5  V to 6.5  V
Voltage on anypin with respect to ground (V_SS )........................................... 0.5 to V_CC +0.5 V
Input current on any pin during overload condition.......................................... 10mA to +10mA
Absolute sum of all input currents during overload condition.....................|.......................100mA|
Power dissipation....................................................................................................................2 W
Note Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for  longer periods may affect device reliability. During overload conditions (V_IN > V_CC or VIN < V_SS)theVoltageonV_CC pins with respect to ground (V_SS) must not exeed the values definded by the absolute maximum ratings.


Description

The SAB 80C517/80C537 is a high-end member of the Siemens SAB 8051 family of microcontrollers. SAB 80C517 is designed in Siemens ACMOS technology and based on the SAB 8051 architecture. ACMOS is a technology which combines high-speed and density characteristics with low-power consumption or dissipation.

While maintaining all the SAB 80C515 features and operating characteristics the SAB 80C517 is expanded in its arithmetic capabilities, "fail-safe" characteristics, analog signal processing and timer capabilities. The SAB 80C537 is identical with the  SAB 80C517 except that it lacks the on-chip program memory. The SAB 80C517/SAB 80C537 is supplied in a 84 pin plastic leaded chip carrier package (P-LCC-84) and in a 100-pin plastic quad metric flat package (P-MQFP-100-2).
