SAB 80C515

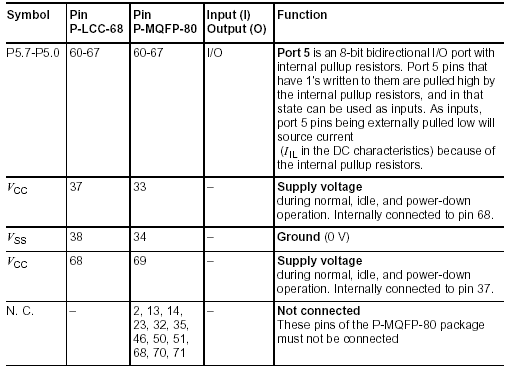

Pinout




Specifications

Ambient temperature under bias SAB 80C515 0 to 70 °C SAB 80C515-T3 40 to 85 °C Storage temperature 65 to 150 °C Voltage on VCC pins with respect to ground (VSS)   0.5 to 6.5 V   Voltage on any pin with respect to ground (VSS)   0.5 to VCC + 0.5 V  Input current on any pin during overload condition  10 mA to + 10 mA  Absolute sum of all input currents during overload condition |100 mA|  Power disipation 2 W


Description

The members of the SAB 80515 family of microcontrollers are:SAB 80C515: Microcontroller, designed in Siemens ACMOS technology, with 8 Kbyte factory mask-programmable ROM SAB 80C535: ROM-less version of the SAB 80C515
 SAB 80515: Microcontroller, designed in Siemens MYMOS technology, with 8 Kbyte factory mask-programmable ROM
 SAB 80535: ROM-less version of the SAB 80515  The SAB 80C535 is identical to the SAB 80C515, except that it lacks the on-chip ROM.In this data sheet the term "SAB 80C515" is used to refer to both the SAB 80C515 and SAB 80C535, unless otherwise noted.
