SAA5288

Features: 1.1 General` On-chip TV control tuning` Hardware and software compatible with SAA5290, SAA5291 and SAA5296` Single +5 V power supply` RGB interface to standard decoder ICs, push-pull output drive` SDIP52 package` Single crystal oscillator for display and microcontroller.1.2 Microcontroll...

product image

SAA5288 Picture
See larger image
SeekIC No. : 004483940 Detail

SAA5288: Features: 1.1 General` On-chip TV control tuning` Hardware and software compatible with SAA5290, SAA5291 and SAA5296` Single +5 V power supply` RGB interface to standard decoder ICs, push-pull outpu...

SAA5288 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA5288
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1.1 General

` On-chip TV control tuning
` Hardware and software compatible with SAA5290, SAA5291 and SAA5296
` Single +5 V power supply
` RGB interface to standard decoder ICs, push-pull output drive
` SDIP52 package
` Single crystal oscillator for display and microcontroller.

1.2 Microcontroller

` 80C51 microcontroller core
` 16 kbyte mask programmed ROM
` 256 bytes of microcontroller RAM
` Eight 6-bit Pulse Width Modulator (PWM) outputs for control of TV analog signals
` One 14-bit PWM for Voltage Synthesis tuner control
` Four 8-bit Analog-to-Digital Converters (ADCs)
` 2 high current open-drain outputs for directly driving LED's etc.
` Switchable bit or byte-oriented I2C-bus interface.

1.3 Display

` Single page (1024 * 8) on-board On Screen Display (OSD) memory
` Double size width and height capability for OSD
` Enhanced display features including meshing, shadowing and additional display attributes
` 260 characters in mask programmed ROM
` Display clock derived internally to reduce peripheral components to a minimum
` Automatic FRAME output control with manual override
` Standby mode for display hardware
` 525-line and 625-line display
` 12 * 10 character matrix
` Stable Display via slave synchronization to Horizontal Sync and Vertical Sync.


Pinout

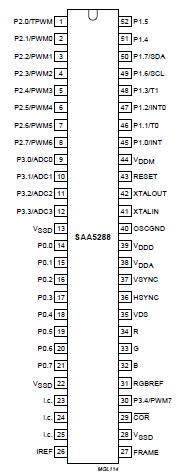

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage (all supplies)   -0.3 +6.5 V
VI input voltage (any input) note 1 -0.3 VDD + 0.5 V
VO output voltage (any output) note 1 -0.3 VDD + 0.5 V
IO output current (each output)   - ±10 mA
IIOK DC input or output diode current   - ±20 mA
Tamb operating ambient temperature   -20 +70 °C
Tstg storage temperature   -55 +125 °C

Note
1. This value has an absolute maximum of 6.5 V independent of VDD.


Description

The SAA5288 is a microcontroller for use in televisions with an OSD generator compatible with the Economy Teletext/TV microcontroller family (SAA5290, SAA5291, SAA5296 etc.). TV control facilities are provided by an on-chip industry standard 80C51 microcontroller and a 1 kbyte DRAM is included for OSD memory.

Hardware and software compatibility with the Economy Teletext/TV microcontroller family minimizes the changes required to develop a TV control function of SAA5288 for areas where teletext is not broadcast.

The SAA5288 cannot acquire Teletext but is based on a Teletext device. Therefore, throughout this document references are made to Teletext especially when describing the Display/OSD section. The Display/OSD section is fully compatible with a Teletext display and has all the features associated with Teletext (i.e. double height/width, flash, teletext boxes, graphics, etc.). The Display section of SAA5288 is described with reference to Teletext to allow software compatibility with the Economy Teletext/TV microcontroller family.
