Product Details

Description



Features:

· Adaptive data slicer
· Data clock regenerator
· Adaptive sync separator, horizontal phase detector and 6 MHz VCO forming display phase locked loop (PLL)

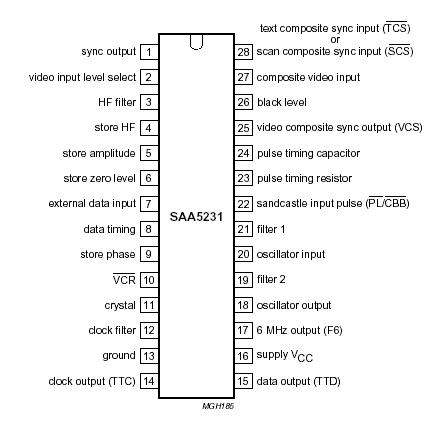

Pinout

Connection Diagram


Specifications

Supply voltage (pin 16) VCC . . . . . . . . . . . . . . . . . . max. 13,2 V
Storage temperature range Tstg  . . . . . . . . . .- 20 to + 125 °C
Operating ambient temperature Tamb . . . . . . . . . 0 to + 70 °C


Description

The SAA5231 is a bipolar integrated circuit intended as a successor to the SAA5030. It extracts Teletext Data from the video signal, regenerates Teletext Clock and synchronizes the text display to the television syncs. The SAA5231 is intended to work in conjunction with CCT (Computer Controlled Teletext), EUROM or other compatible devices.
