Features:

SAA5261, SAA5262 and SAA5263
· Complete 625-line teletext decoder in a single integrated circuit thereby reducing printed-circuit board area and cost
· Automatic detection of transmitted pages so that only existing pages will be selected by page-up and page-down once inventory validated
· Automatic detection of transmitted Fastext links or service information (packet 8/30)
· On-screen display for user interface (menus, etc.) using teletext and dedicated menu icons
· Video Programming System (VPS) decoding
· Wide Screen Signalling (WSS) decoding
· 8-page Fastext decoder
· 6-page TOP decoder in addition to capture of Basic TOP Table (BTT) and 3 Additional Information Table (AIT) pages
· 4-page user defined list mode
· Yugoslavian, Cyrillic, Greek/Turkish, Thai, Arabic/Hebrew, Pan-European and Arabic/English/French language coverage
· High level command interface via I2C-bus giving easy control from a low software overhead
· High level command interface is backward compatible to SAFARI interface
· 625 and 525 line display
· RGB interface to standard colour decoder ICs, push-pull output drive
· Versatile 8-bit open-drain I/O expander
· Single 12 MHz crystal oscillator for reduced cost
· +5 V power supply.
SAA5262 and SAA5263
· Automatic Channel Installation (ACI)
· Enhanced SAFARI interface providing additional commands.
SAA5263
· Electronic Programme Guide (EPG) feature.


Pinout

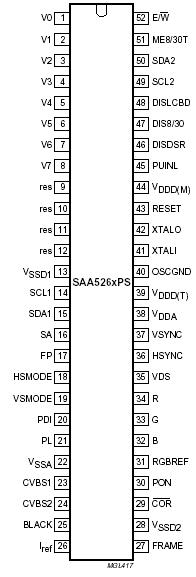

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

VDDD

VDDA

VI

VO

IO

II/OK

Tamb

Tstg

 digital supply voltages

analog supply voltage

input voltage (any input)

output voltage (any output)

output current (each output)

DC input or output diode current

operating ambient temperature

storage temperature

note 1

note 1






 -0.3

-0.3

-0.3

-0.3

-

-

-20

-55		 +6.5

+6.5

VDDD(M) + 0.5

VDDD(M) + 0.5

±10

±20

+70

+125		 V

V

V

V

mA

mA

°C

°C
Note
1. This maximum value has an absolute maximum of 6.5 V independent of VDDD.


Description

The SAA526xPS ICs are single-chip 10-page 625-line World System Teletext (WST) decoders with a high level command interface, SAFARI compatible.

SAA526xPS has been designed so that the overall system cost is kept to a minimum. This has been achieved through the capability of the device to be driven from a single +5 V power supply, low cost 12 MHz crystal oscillator and the high level command interface, SAA526xPS offers the benefit of low software overhead in the TV microcontroller.

The SAA526xPS offers automatic detection of Fastext or TOP transmissions. The device also incorporates a facility to detect the pages in the transmission, which allows only transmitted pages to be selected by page-up and page-down.

SAA5262 and SAA5263 provide Automatic Channel Installation (ACI) information.

SAA5263 provides access to Electronic Programme Guide (EPG) information.
