Product Details

Description



Features:

` Complete 'stand-alone' Line 21 decoder in one package
` On-chip display RAM allowing full page Text mode
` Enhanced character display modes
` Full colour captions
` RGB interface for standard colour decoder ICs
` Automatic handling of Field 2 data
` Automatic selection of (1H, 1V), (2H, 1V) or (2H, 2V) scan modes
` Onboard OSD facility using Character generator
` RGB inputs to support existing OSD ICs
` I2C-bus or 'stand-alone' pin control
` Automatic data-ready signal generation on data acquisition
` Can decode signals recorded on standard VHS and S-VHS tape.

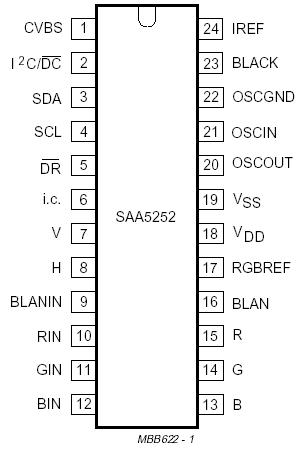

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD

VImax

VOmax

Vdif

IOmax

IIOK

Tamb

Tstg

Ves		 supply voltage (all supplies)

maximum input voltage (any input)

maximum output voltage (any output)

difference between VSS and OSCGND

DC input or output diode current

maximum output current (each output)

operating ambient temperature

storage temperature

electrostatic handling
human body model
machine model		 note 1

note 1














note 2
note 3		 -0.3

-0.3

-

-

-

-

-20

-55

-2000
-200		 +6.5

VDD + 0.5

VDD + 0.5

± 0.25

± 20

± 10

+70

+125

+2000
+200		 V

V

V

V

mA

mA

°C

°C

V
V

Notes
1. This maximum value has an absolute maximum of 6.5 V independent of VDD.
2. The human body model ESD simulation is equivalent to discharging a 100 pF capacitor via a 1.5 kW resistor, which produces a single discharge transient. Reference "Philips Semiconductors Test Method UZW-BO/FQ-A302 (similar to MIL-STD 883C method 3015.7)".
3. The machine model ESD simulation is equivalent to discharging a 200 pF capacitor via a resistor and series inductor with effective dynamic values of 25 W and 2.5 mH, which produces a damped oscillating discharge. Reference "Philips Semiconductors Test Method UZW-BO/FQ-B302 (similar to EIAJ IC-121 Test Method 20 condition C)".




Description

The SAA5252 (LITOD) is a single-chip CMOS device, which will acquire, decode and display Line 21 Closed Captioning data from a 525-line composite video signal. Operation as an On-Screen Display (OSD) SAA5252 is also possible. Normal and line progressive scan modes are supported.
