S6510

Features: • No lamp protection• Low Start up & Operating Current• Internal Soft Start• Flexible Soft Start Frequency• Trimmed 1.5% internal Reference• Under Voltage Lock Out with Hysteresis• High Current Totem Pole Gate DrivePinoutSpecifications C...

product image

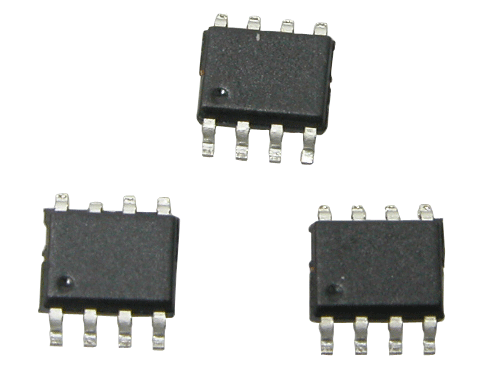

S6510 Picture
See larger image
SeekIC No. : 004482755 Detail

S6510: Features: • No lamp protection• Low Start up & Operating Current• Internal Soft Start• Flexible Soft Start Frequency• Trimmed 1.5% internal Reference• Under V...

S6510 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S6510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• No lamp protection
• Low Start up & Operating Current
• Internal Soft Start
• Flexible Soft Start Frequency
• Trimmed 1.5% internal Reference
• Under Voltage Lock Out with Hysteresis
• High Current Totem Pole Gate Drive




Pinout

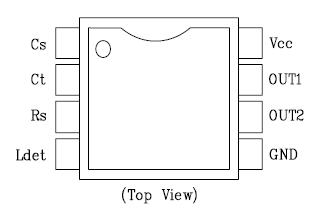

Connection Diagram




Specifications

CHARACTERISTICS
SYMBOL
VALUE
UNITS
Supply Voltage
VCC
18
V
Peak Drive Output Current
Ioh, lol
±400
mA
Driver Output Clamping Diodes Vo>Vcc or Vo<-0.3V
Iclamp
±10
mA
Error Amp, Compensation and Multiplier Input Voltage
Vin
-0.3 to 6
V
Power Dissipation @ Pamb=50
Pd
0.8
W





Description

The S6510 provides simple and performance electronics ballast control function for the half bridge L/C resonant inverter. This device is optimized for electronics ballast requiring a minimum board area, reduced component count and low power dissipation.


The S6510 provides simple and performance electronics ballast control function for the half bridge L/C resonant inverter. This device is optimized for electronics ballast requiring a minimum board area, reduced component count and low power dissipation.

Internal soft start circuitry eliminates the need for an external soft start PTC resistor.

The initial soft start frequency and soft start time can be easily adjusted depending on the types of lamp. Prevent burning out of switches in no lamp condition. Internal 18V regulator clamps Vcc line of supply voltage for eliminating an external zener diode.
