S5N8944B

Features: · Full Compliance with ITU-T G.Lite and G.hs· FDM based DMT Line Coding· Data Rate: Up to 3.5 Mbps for Downstream and 600 kbps for Upstream.· Reach: 5.4 km (18 kft) on 24 AWG and 4 km (13.5kft) on 26 AWG· Rate Adaptive Modem (steps of 32kbps)· Reed-Solomon Forward Error Correction with I...

product image

S5N8944B Picture
See larger image
SeekIC No. : 004482703 Detail

S5N8944B: Features: · Full Compliance with ITU-T G.Lite and G.hs· FDM based DMT Line Coding· Data Rate: Up to 3.5 Mbps for Downstream and 600 kbps for Upstream.· Reach: 5.4 km (18 kft) on 24 AWG and 4 km (13....

S5N8944B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5N8944B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Full Compliance with ITU-T G.Lite and G.hs
· FDM based DMT Line Coding
· Data Rate: Up to 3.5 Mbps for Downstream and 600 kbps for Upstream.
· Reach: 5.4 km (18 kft) on 24 AWG and 4 km (13.5kft) on 26 AWG
· Rate Adaptive Modem (steps of 32kbps)
· Reed-Solomon Forward Error Correction with Interleaver
· Frequency and Time Domain Equalizer
· Support Fast Retraining Function
· Support Network Management Function
· Support Power Management Function
· Host Interface (Intel/Motorola) and ATM(UTOPIA-2)/non-ATM Interface
· 0.25mm, 2.5V CMOS Technology
· Operating Temperature: -40 °C to 85 °C
· Package Type: 160-QFP


Pinout

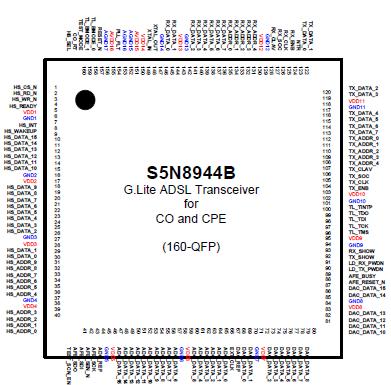

Connection Diagram


Specifications

Symbol
 Parameter
Rating
Unit
VDD DC Supply Voltage
3.6
V
VIN

DC input Voltaget
2.5V Input Buffer

3.6

3.3V Input Buffer

4.6

5V-tolerant Input Buffer
6.5
VOUT

DC Output Voltage
2.5V Buffer
3.6

3.3V Buffer

4.6

ILATCH Latch-up Current
±200
mA
TSTG Storage Temperature

-65 to 150





Description

The S5N8944B is a complete ATM-based rate adaptive G.Lite ADSL modem solution with associated F/W and an Analog Front-End (S5N8943). The S5N8944B provides all the digital functions such as ATM TC, FEC codec with interleaver/de-interleaver, adaptive QAM codec, FFT/IFFT, equalizers, digital filters and so on.

There are four interfaces for external communications; UTOPIA-2 interface for direct connection to ATM systems, serial interface for non-ATM applications, 16-bit ADC/DAC interface, and host interface for general CPUs like Intel or Motorola.

The same chipset can be used at both sides of the link, Central Office and Customer Premises Equipment. The S5N8944B uses 17.664MHz Xtal oscillator as a master clock for CO side and 17.664MHz VCXO for CPE.
