S5D2501F

Features: • Build in 1K-byte SRAM• 464 ROM fonts (448 standard fonts + 16 Multi-color fonts)• Full Screen Memory Architecture• Wide range PLL available (15 kHz - 120 kHz)• Programmable vertical height of character• Programmable vertical and horizontal positionin...

product image

S5D2501F Picture
See larger image
SeekIC No. : 004482648 Detail

S5D2501F: Features: • Build in 1K-byte SRAM• 464 ROM fonts (448 standard fonts + 16 Multi-color fonts)• Full Screen Memory Architecture• Wide range PLL available (15 kHz - 120 kHz)R...

S5D2501F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5D2501F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Build in 1K-byte SRAM
• 464 ROM fonts (448 standard fonts + 16 Multi-color fonts)
• Full Screen Memory Architecture
• Wide range PLL available (15 kHz - 120 kHz)
• Programmable vertical height of character
• Programmable vertical and horizontal positioning
• Character color selection up to 16 different colors
• Programmable background color (Up to 16 colors)
• Character blinking, bordering and shadowing
• Color blinking
• Character scrolling
• Fade-in and fade-out
• Row to row spacing control
• Window outline and shadowing
• Box drawing
• Character sizing up to four times
• 8 PWM DAC channels with 8-bit resolution
• 96 MHz pixel frequency from on-chip PLL
• I2C Protocol Data Transmission (Slave Address : BAH)
• OSD Vertical Bouncing Auto Detect / Correction
• Back Raster Blanking (Row Control)

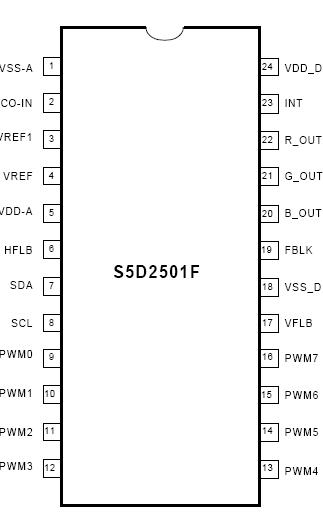

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Min.
Typ.
Max.
Maximum Supply Voltage
VDD
-
-
6.5
V
Input Voltage
VI
-
-
5.25
V
Operating Temperature Range
TOPR
-20
-
70
°C
Storage Temperature Range
TSTG
-40
-
125
°C
Power Dissipation
PD
-
-
1200
mW



Description

According to the I2C protocol, the S5D2501F receives the data from a micro controller. The SDA line and the SCL line are shown in Figure 4. As shown in Figure 4, after the starting pulse, the slave address with R/W* bit and an acknowledge are transmitted in sequence, an internal register address of the S5D2501F is followed. The first 8-bit byte is the upper 8bits of the register address. The lower 8bits of the register address are followed after the second acknowledge. There is a data transmission format and are two address bit patterns in the S5D2501F as following. The slave address of the S5D2501F is BAH(in hexadecimal).
