S5D2400X

Features: ` High-Quality Advanced Scaling Fully Programmable Scale-Up Ratios Scale-up or down for Horizontal and Vertical` Built-in OSD for LCD Monitor 512 ROM Fonts 28 RAM Fonts` Economic Output Clock Source Built-In PLL Core External X-tal Device` Supports I2C Bus Host Interface` R/G/B Gam...

product image

S5D2400X Picture
See larger image
SeekIC No. : 004482647 Detail

S5D2400X: Features: ` High-Quality Advanced Scaling Fully Programmable Scale-Up Ratios Scale-up or down for Horizontal and Vertical` Built-in OSD for LCD Monitor 512 ROM Fonts 28 RAM Fonts` Economic Outpu...

S5D2400X Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5D2400X
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High-Quality Advanced Scaling
    Fully Programmable Scale-Up Ratios
    Scale-up or down for Horizontal and Vertical
` Built-in OSD for LCD Monitor
    512 ROM Fonts
    28 RAM Fonts
` Economic Output Clock Source
    Built-In PLL Core
    External X-tal Device
` Supports I2C Bus Host Interface
` R/G/B Gamma look-up table
` Dithering
    8 to 6 Dithering


Application

· Multimedia LCD Monitors/TVs
· Digital TVs
· CRTs and Rear Projection TVs
· Plasma Displays
· Projection Displays


Pinout

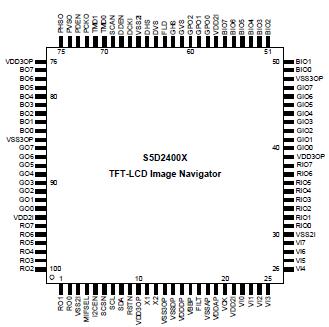

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply Voltage
VDD
1.8V VDD
2.7
V
3.3V VDD
3.8
Input Voltage
VIN
3.3V input buffer
3.8
3.3V interface /
5V tolerant input buffer
6.5
Output Voltage
VOUT
3.3V output buffer
2.7
1.8V interface /
3.3V tolerant output buffer
3.8
Latch Up Current
ILatch
± 100
mA
Storage temperature
TSTG
Plastic
- 65 to 150



Description

S5D2400X scaling image processor is a display SOC designed for TFT-LCD monitors and TV systems. This chip consists of Scaler, Deinterlace and ACE block. The chip receives the signal of digital RGB 24-bit or ITU-R BT.656/601 format, deinterlaces the signal and sends the single or dual channel digital data (24-bit or 48-bit). The S5D2400X provides the ACCE (Adaptive Color & Contrast Enhancement) function that minimizes color change and improves brightness function, and has the built-in filter that improves sharpness.

The built-in OSD supports 512 ROM fonts of 12*18 matrix, and processes 28 RAM fonts.
