S5A1903X01

Features: • IP Mode• Equalizer Mode• 16-bit Fixed Point DSP Core• Two Internal 256-word Data RAM• 2K-word Internal Program ROM• Wide Range of System Clock: 8 - 40 MHz- PCM Input/ Output Interface - I2C Host Interface - Low Power Consumption less than 4mA in work...

product image

S5A1903X01 Picture
See larger image
SeekIC No. : 004482627 Detail

S5A1903X01: Features: • IP Mode• Equalizer Mode• 16-bit Fixed Point DSP Core• Two Internal 256-word Data RAM• 2K-word Internal Program ROM• Wide Range of System Clock: 8 - 40...

S5A1903X01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5A1903X01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• IP Mode
• Equalizer Mode
• 16-bit Fixed Point DSP Core
• Two Internal 256-word Data RAM
• 2K-word Internal Program ROM
• Wide Range of System Clock: 8 - 40 MHz
   - PCM Input/ Output Interface
   - I2C Host Interface
   - Low Power Consumption less than 4mA in working mode 10uA in sleep mode
   - Packages: 32-LQFP/ 32-BCC
   - 3V Single Power Supply


Application

• Cellular Phone
• Wireless and Traditional Telephone


Pinout

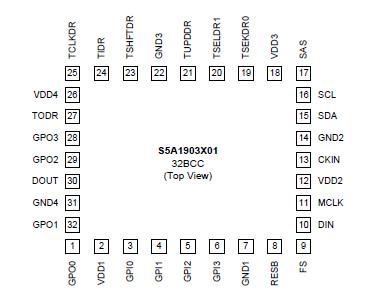

Connection Diagram


Specifications

Item
Symbol
Value
Unit
Remark
DC supply voltage (digital)
VDD
-0.3 - 3.8
V
-
DC supply voltage (analog)
VDDA
-0.3 - 3.8
V
DAC power
DC input voltage
VIN
-0.3 - VDD + 0.3
V
-
Storage temperature
TSTG
-40 - 125
-
Latch-up current
ILU
±100
mA
-



Description

The S5A1903X01 implements the voice intelligibility processor (VIP). The VIP is a signal processing algorithm designed to increase the intelligibility of human speech in a high ambient noise environment.Unlike noise cancellation or adaptive speech filtering systems, VIP operates on the speech signal only and is totally independent of the noise. This approach makes speech clearer and easier to understand regardless of the characteristics of the noise source, and eliminates the need for processing of the noise signal.

In addition to VIP, the S5A1903X01 includes voice equalizer. The equalizer is composed of four different frequency bands, and each band is controlled between +12dB and -12dB. Thus, it can be used to compensate of speaker characteristics.

The Figure 1 shows how the S5A1903X01 interfaces to Vocoder and Codec in cellular phone.
