S5A1901H02

Features: • Over 15 Sound Effect Modes including two kinds of Karaoke mode• 3/5/7-band Graphic Equalizer and 5/7-band Spectrum Analyzer Interface• Mic-Echo, Loudness Function and Vocal Canceller• Digital Volume/Balance/Tone Control• Fader Function for Car Stereo Syste...

product image

S5A1901H02 Picture
See larger image
SeekIC No. : 004482626 Detail

S5A1901H02: Features: • Over 15 Sound Effect Modes including two kinds of Karaoke mode• 3/5/7-band Graphic Equalizer and 5/7-band Spectrum Analyzer Interface• Mic-Echo, Loudness Function and V...

S5A1901H02 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5A1901H02
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Over 15 Sound Effect Modes including two kinds of Karaoke mode
• 3/5/7-band Graphic Equalizer and 5/7-band Spectrum Analyzer Interface
• Mic-Echo, Loudness Function and Vocal Canceller
• Digital Volume/Balance/Tone Control
• Fader Function for Car Stereo System
• Programmable Sound Mode
• 33 MIPS 16 bit fixed point DSP Core (SSP1610)
• Built-in Stereo 16 bit S-D ADC and DAC
• External Clock: 16.9344MHz
• Sampling Frequency: 44.1kHz
• Support Various Digital Audio Interface Formats
• Normal Microcontroller Interface and I2C Bus Interface
• 0.5 Kword Internal Data RAM and 6 Kword Delay Memory for Sound Effect
• 6 Kword Internal Program ROM and 0.5 Kword Parameter ROM for Movie Mode
• 5 V Single Power Supply
• 0.5mm Triple Metal CMOS Process
• Package: 100 QFP


Application

• CD Player
• Video CD
• TV
• Karaoke System
• Car Stereo System
• General Stereo Audio Systems


Pinout

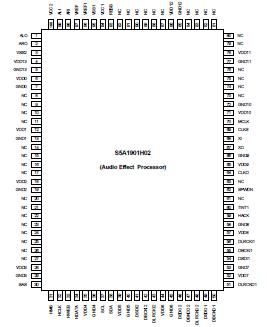

Connection Diagram


Specifications

Characteristics
Symbol
Value
Unit
DC Supply Voltage
VDD
- 0.3 - +7.0
V
DC Input Voltage
VI
- 0.3 - VDD + 0.3
V
Storage Temperature
Tstg
- 40 - + 125
Operating Temperature
Top
- 40 - + 110



Description

The S5A1901H02, Audio Effect Processor, reproduces vivid sound of certain places and dynamic sound of movies. The S5A1901H02 has over 15 sound effect modes including two kinds of Karaoke mode. In addition to the sound modes, the S5A1901H02 provides mic-echo, vocal canceller, loudness function, graphic equalizer, spectrum analyzer interface, tone control and volume/balance control so that it can satisfy various sound requirements of audio systems including TV, stereo audio systems, etc. Furthermore, the S5A1901H02 has built-in 16 bit stereo S-D ADC and DAC for easy application. The S5A1901H02 also includes two digital source interface blocks and a host interface block supporting normal microcontroller and I2C bus interfaces.
