Product Details

Description



Pinout

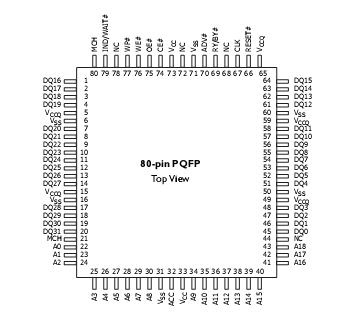

Connection Diagram


Specifications

Storage Temperature, Plastic Packages. . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature with Power Applied . . . . . . . . . . . . . . 65°C to +145°C
VCC , VIO (Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to + 3.0 V
ACC, A9, OE#, and RESET# (Note 2) . .  . . . . . . . . . . . . . . . . .0.5 V to +13.0 V
Address, Data, Control Signals
                  (Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 3.60 V
                 All other pins (Note 1). . . . . . . . . . . . . . . . . . . . . . .0.5 V to +3.60 V
Output Short Circuit Current (Note 3). . . . . . . . . . . . . . . . . . . . . . . . 200 mA


Description

    The S29CD016G is a 16 Megabit, 2.5 Volt-only single power supply burst mode flash memory device. The device can be configured for 524,288 double words. The device can also be programmed in standard EPROM programmers.

    To eliminate bus contention, S29CD016G includes separate chip enable (CE#), write enable (WE#), and output enable (OE#) controls. Additional control inputs are required for synchronous burst operations: Load Burst Address Valid (ADV#), and Clock (CLK).
