Product Details

Description

Features:

Memory Protection Features
􀂄 Memory Protection
- W# pin works in conjunction with Status Register Bits to protect specified memory areas
- Status Register Block Protection bits (BP1, BP0) in status register configure parts of memory as readonly
SOFTWARE FEATURES
􀂄 SPI Bus Compatible Serial Interface

Pinout

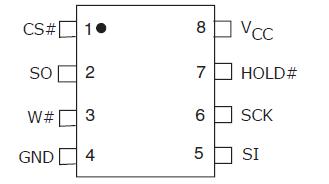

Connection Diagram

Specifications

Ambient Storage Temperature . . . . . . . . . . 65°C to +150°C
Voltage with Respect to Ground:
All Inputs and I/Os. . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.5 V

Description

The S25FL004D device is a 3.0 Volt (2.7 V to 3.6 V) single power supply Flash memory device. S25FL004D consists of eight sectors, each with 512 Kb memory.

Data appears on SI input pin when inputting data into the memory and on the SO output pin when outputting data from the memory. The S25FL004D are designed to be programmed in-system with the standard system 3.0 Volt V_CC supply.

The memory S25FL004D can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The memory S25FL004D supports Sector Erase and Bulk Erase instructions.

S25FL004D requires only a 3.0 Volt power supply (2.7 V to 3.6 V) for both read and write functions. Internally generated and regulated voltages are provided for the program operations.This device does not require V_PP supply.
