RT1A050ZPTR

MOSFET P Chan-12V-5A Mid-PowerSwitching

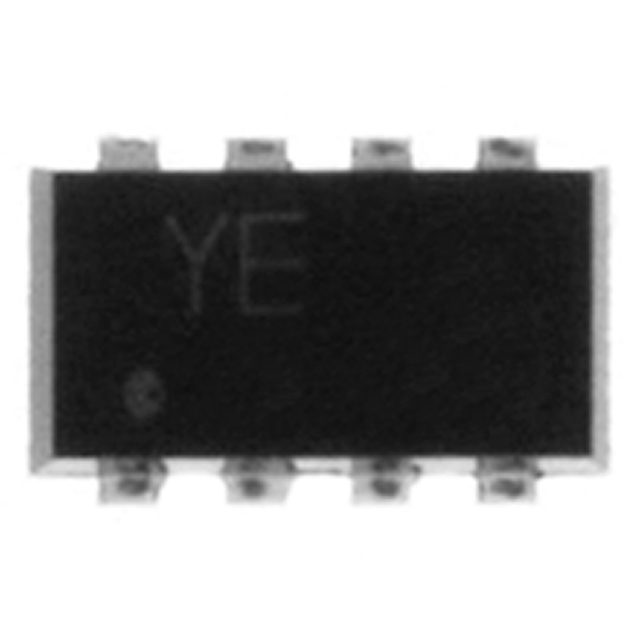

product image

RT1A050ZPTR Picture
See larger image
SeekIC No. : 00158503 Detail

RT1A050ZPTR: MOSFET P Chan-12V-5A Mid-PowerSwitching

RT1A050ZPTR Data Sheet

floor Price/Ceiling Price

US $ .19~.2 / Piece | Get Latest Price
Part Number:
RT1A050ZPTR
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~3000
  • 3000~6000
  • 6000~12000
  • Unit Price
  • $.2
  • $.19
  • $.19
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : - 12 V
Gate-Source Breakdown Voltage : +/- 10 V Continuous Drain Current : 5 A
Resistance Drain-Source RDS (on) : 26 mOhms at 4.5 V Configuration : Single Hex Drain
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : TSST-8 Packaging : Reel

Description

Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : - 12 V
Gate-Source Breakdown Voltage : +/- 10 V
Continuous Drain Current : 5 A
Configuration : Single Hex Drain
Package / Case : TSST-8
Resistance Drain-Source RDS (on) : 26 mOhms at 4.5 V


Parameters:

Technical/Catalog InformationRT1A050ZPTR
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityP-Channel
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25° C5A
Rds On (Max) @ Id, Vgs26 mOhm @ 5A, 4.5V
Input Capacitance (Ciss) @ Vds 2800pF @ 6V
Power - Max1.25W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs34nC @ 4.5V
Package / Case*
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names RT1A050ZPTR
RT1A050ZPTR
