Features:

• 18 skew controlled outputs
• Supports up to four SDRAM DIMMs
• Skew between any two outputs is less than 250 pS
   ¥ I2C Serial Interface for programming options
• Multiple power and ground pins for noise reduction
• Single 3.3V power supply
• 48 Pin SSOP package


Application

• SDRAM Clock Buffers for Intel's 440BX chip set


Pinout

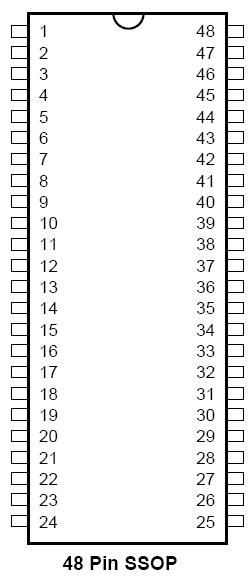

Connection Diagram


Specifications

Parameter Min. Typ. Max. Units
Supply Voltage, VDD -0.5   5 V
Input Voltage -0.5   VDD+0.5 V
Output Applied Voltage -0.5   VDD+0.5 V
Junction Temperature     140 °C
Storage Temperature -65   150 °C
Lead Soldering (10 seconds)     300 °C
Notes:
1. Absolute maximum ratings are limiting values applied individually while all other parameters are within specified operating
    conditions. Functional operation under any of these conditions is NOT implied.
2. Applied voltage must be current limited to specified range, and measured with respect to GND.
3. Forcing voltage must be limited to specified range.
4. Current is specified as conventional current, flowing into the device.


Description

The RC7101 is a low voltage eighteen output clock buffer which supports 4 DIMMs. The skew between any two outputs is less than 250 pS and the buffers can be individually enabled or disabled by programming via the I2C serial interface. The SDATA and SCLK serial inputs both have internal
pull-up resistors.

An Output Enable (OE) pin is also provided so that all the outputs can be tri-stated when held low. This pin of RC7101 is normally high and has an internal pull-up resistor.
