R5F61527R

Features: • 32-bit high-speed H8SX CPUUpward compatible with the H8/300 CPU, H8/300H CPU, and H8S CPUSixteen 16-bit general registers87 basic instructions• Extensive peripheral functionsDMA controller (DMAC)16-bit timer pulse unit (TPU)Programmable pulse generator (PPG)*Watch dog timer...

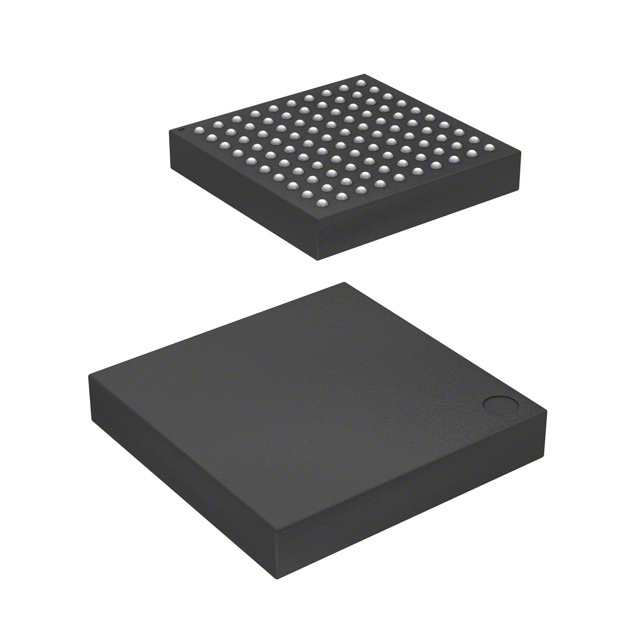

product image

R5F61527R Picture
See larger image
SeekIC No. : 004469399 Detail

R5F61527R: Features: • 32-bit high-speed H8SX CPUUpward compatible with the H8/300 CPU, H8/300H CPU, and H8S CPUSixteen 16-bit general registers87 basic instructions• Extensive peripheral functions...

R5F61527R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
R5F61527R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 32-bit high-speed H8SX CPU
Upward compatible with the H8/300 CPU, H8/300H CPU, and H8S CPU
Sixteen 16-bit general registers
87 basic instructions
• Extensive peripheral functions
DMA controller (DMAC)
16-bit timer pulse unit (TPU)
Programmable pulse generator (PPG)*
Watch dog timer (WDT)
Serial communication interface (SCI) can be used in asynchronous and clocked synchronous
mode
Controller area network (RCAN-ET)
Synchronous serial communication unit (SSU)
10-bit A/D converter
Clock pulse generator
Note: * Supported only by the H8SX/1527R.




Specifications

Item Symbol Value Unit
Power supply voltage VCC 0.3 to +7.0 V
Input voltage (except ports 4 and 5) Vin 0.3 to VCC +0.3 V
Input voltage (port 4) Vin 0.3 to AVCC1 + 0.3 V
Input voltage (port 5) Vin 0.3 to AVCC0 + 0.3 V
Analog power supply voltage AVCC0 0.3 to +7.0
AVCC1 0.3 to +7.0 V
Analog input voltage (port 4) VAN 0.3 to AVCC1 + 0.3 V
Analog input voltage (port 5) VAN 0.3 to AVCC0 + 0.3 V
Operating temperature Topr Wide-range specifications:
40 to +85*
Storage temperature Tstg 55 to +125

Caution: Permanent damage to the LSI may result if absolute maximum ratings are exceeded.
Note: * The operating temperature when programming/erasing the flash memory ranges from 0°C to +85°C for wide-range specification products.






Description

The following registers of R5F61527R are related to the operating mode setting.
• Mode control register (MDCR)
• System control register (SYSCR)
