Features:

Supports VESA VGA (640 x 350 / 640 x 640 / 640 x 480)
Supports IBM VGA (640 x 350 / 640 x 400 / 640 x 480)
Supports IBM 8514/A (Interlace / Non-Interlaced)
Supports VESA Super VGA
Supports VESA New Super VGA
Supports European Super VGA
Supports VESA XGA (1024 x 768)
Supports Work Station (1280 x 1024)
The Open-Drain Output Pin can be pulled up to 14 Volts (with Pull-High
Resistor)
Supports User-Defined Special Display Mode/Frequency Discrimination

Application

Multi-Sync Display Monitor

Pinout

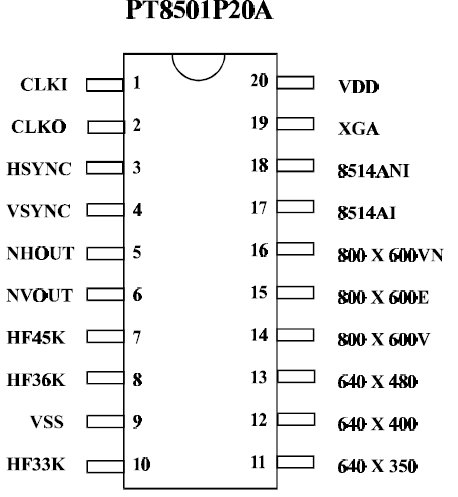

Connection Diagram

Description

PT8501P20A is a frequency discriminator IC utilizing CMOS Technology specially designed for multi-sync display monitors. PT8501P20A supports a wide variety of display modes -- from VGA's 640 x 350 to work station's 1280 x 1024. By checking the frequency and/or polarity of the horizontal and/or vertical synchronous signals, PT8501P20A can decide the proper display mode. PT8501P20A then drives the corresponding output pins from high impedance to low level. PT8501P20A also sends out negative polarity horizontal/vertical synchronous signals. PT8501P20A 's highly comprehensive features make it very reliable in performance.
