PT8501P16

Features: Supports VESA VGA (640 x 350 / 640 x 640 / 640 x 480) Supports IBM VGA (640 x 350 / 640 x 400 / 640 x 480) Supports IBM 8514/A (Interlace / Non-Interlaced) Supports VESA Super VGA Supports VESA New Super VGA Supports European Super VGA Supports VESA XGA (1024 x 768)Supports Work Station ...

product image

PT8501P16 Picture
See larger image
SeekIC No. : 004466636 Detail

PT8501P16: Features: Supports VESA VGA (640 x 350 / 640 x 640 / 640 x 480) Supports IBM VGA (640 x 350 / 640 x 400 / 640 x 480) Supports IBM 8514/A (Interlace / Non-Interlaced) Supports VESA Super VGA Supports...

PT8501P16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT8501P16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Supports VESA VGA (640 x 350 / 640 x 640 / 640 x 480)
Supports IBM VGA (640 x 350 / 640 x 400 / 640 x 480)
Supports IBM 8514/A (Interlace / Non-Interlaced)
Supports VESA Super VGA
Supports VESA New Super VGA
Supports European Super VGA
Supports VESA XGA (1024 x 768)
Supports Work Station (1280 x 1024)
The Open-Drain Output Pin can be pulled up to 14 Volts (with Pull-High
   Resistor)
Supports User-Defined Special Display Mode/Frequency Discrimination


Application

Multi-Sync Display Monitor


Pinout

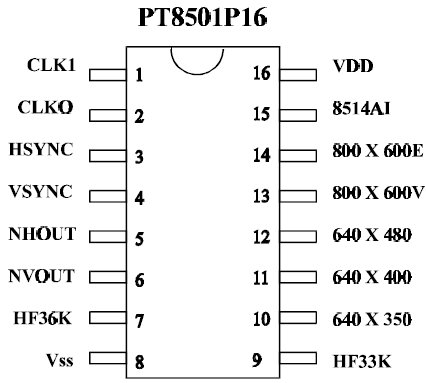

Connection Diagram


Description

PT8501P16 is a frequency discriminator IC utilizing CMOS Technology specially designed for multi-sync display monitors. PT8501P16 supports a wide variety of display modes -- from VGA's 640 x 350 to work station's 1280 x 1024. By checking the frequency and/or polarity of the horizontal and/or vertical synchronous signals, PT 8501 can decide the proper display mode. PT8501P16 then drives the corresponding output pins from high impedance to low level. PT8501P16 also sends out negative polarity horizontal/vertical synchronous signals. PT8501P16's highly comprehensive features make it very reliable in performance.
