PT2380

Features: · CMOS Technology· Least External Components· Available in 16 Pins, DIP or SO Package· 4 Sound Effect Selections Available: Classical, Pops, Rock, and Normal/Flat· High Operating Voltage Range: Vcc = 5 ~ 15 V· Two Channels in the same chip· Can be controlled by Micro-Processor Output Pin...

product image

PT2380 Picture
See larger image
SeekIC No. : 004466256 Detail

PT2380: Features: · CMOS Technology· Least External Components· Available in 16 Pins, DIP or SO Package· 4 Sound Effect Selections Available: Classical, Pops, Rock, and Normal/Flat· High Operating Voltage R...

PT2380 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2380
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CMOS Technology
· Least External Components
· Available in 16 Pins, DIP or SO Package
· 4 Sound Effect Selections Available: Classical, Pops, Rock, and Normal/Flat
· High Operating Voltage Range: Vcc = 5 ~ 15 V
· Two Channels in the same chip
· Can be controlled by Micro-Processor Output Pin


Application

· Mini Compo
· Car Stereo
· Radio Cassette Recorders
· Multi-Media Speaker
· MPEG Card
· Other Audio Equipments

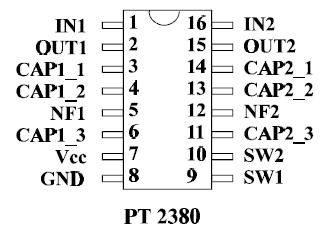

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
RATING
UNIT
VCC max
Supply Voltage
15
V
Pd
 Power Dissipation (Ta >25)
1000
mW
Ko
 Thermal Derating (Ta > 25)
10.0
mW/
Topr
 Operating Temperature
-20 ~ 75
Tstg
 Storage Temperature
-40 ~ 125
VI
 Switch Input Voltage Range
-0.3 ~ Vcc+0.3
V



Description

PT 2380 is a pre-set equalizer IC utilizing CMOS Technology specially designed for audio equipment. It features four sound selections, namely: Classical, Pops, Rock and Normal/Flat which may be selected by the 2 control pins (SW1 and SW2).

PT 2380 has 2 built-in channels - each containing an internal operation amplifier and selectable resistors. Thus, least external components are used. By connecting only 3 capacitors to each channel, the high performance pre-set equalizing function of this IC is achieved. Pin assignments and application circuit are optimized for easy PCB layout and cost saving for audio applications. PT 2380 is housed in a 16-Pin DIP or SO Package and is suitable for stereo sound applications
