PT2300

Features: • CMOS Technology• Stereo input• Output power 2W * 2 (Vcc=6V, THD=1%, RL=4)• Low harmonics distortion (0.03%)• Include 32 steps volume controller• SE and BTL modes operation• Suppress the pop and click noise when mode changed• Shutdown func...

product image

PT2300 Picture
See larger image
SeekIC No. : 004466225 Detail

PT2300: Features: • CMOS Technology• Stereo input• Output power 2W * 2 (Vcc=6V, THD=1%, RL=4)• Low harmonics distortion (0.03%)• Include 32 steps volume controller• SE an...

PT2300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS Technology
• Stereo input
• Output power 2W * 2 (Vcc=6V, THD=1%, RL=4)
• Low harmonics distortion (0.03%)
• Include 32 steps volume controller
• SE and BTL modes operation
• Suppress the pop and click noise when mode changed
• Shutdown function, turn on can into save mode (Icc<0.7A)
• Built-in overheat protect




Application

• LCD monitor (for TV)
• Portable audio
• Multimedia speakers
• Other audio applications




Pinout

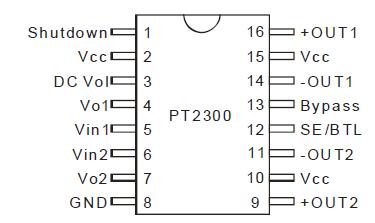

Connection Diagram




Description

The PT2300 is a power amplifier utilizing CMOS Technology specially designed for audio purpose. It can deliver 2W * 2 power output to the 4 load. The power consumption is very low in stand-by. Total harmonic distortion is lower than 0.03%. The output mode can be switched between the SE (Single-Ended) or BTL (Bridge-Tied Load) mode. The built-in volume controller can change the output volume by an external supplied DC voltage. Built-in over-temperature protection, package size is not occupies PCB space. It is suitable for small or portable products.
