PT2305

Features: • CMOS Technology• Operating voltage: 2.7V ~ 6V• Output power 2.5W * 2 (4/10%THD)• Built-in 31 steps volume controller• Suppress the pop and click noise when mode changed• Extreme low current consumption in Shutdown mode (Icc<0.7A)• Built-in o...

product image

PT2305 Picture
See larger image
SeekIC No. : 004466228 Detail

PT2305: Features: • CMOS Technology• Operating voltage: 2.7V ~ 6V• Output power 2.5W * 2 (4/10%THD)• Built-in 31 steps volume controller• Suppress the pop and click noise when ...

PT2305 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2305
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS Technology
• Operating voltage: 2.7V ~ 6V
• Output power 2.5W * 2 (4/10%THD)
• Built-in 31 steps volume controller
• Suppress the pop and click noise when mode changed
• Extreme low current consumption in Shutdown mode (Icc<0.7A)
• Built-in over temperature protection




Application

• LCD monitor or TV
• Portable audio
• Multimedia speakers
• Other audio applications




Pinout

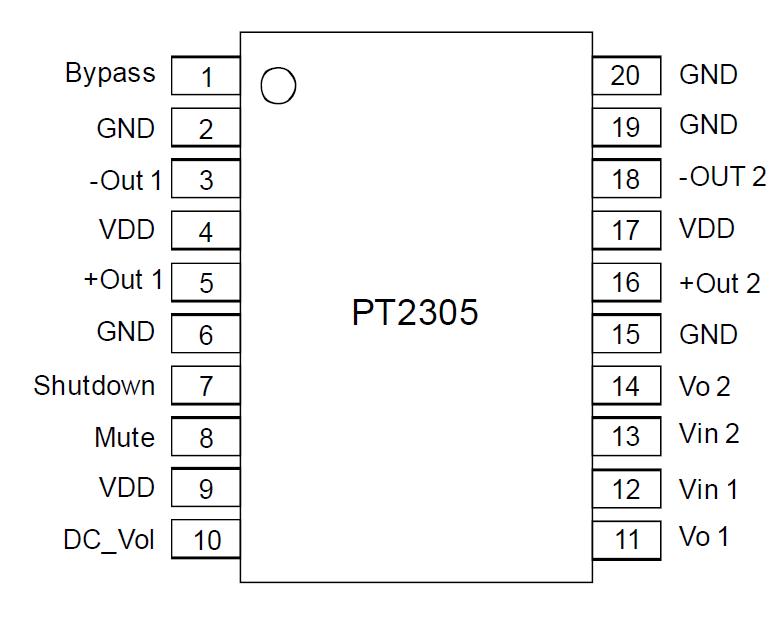

Connection Diagram




Description

The PT2305 is an audio power amplifier utilizing CMOS Technology specially designed for audio purpose. It can deliver 2.5W * 2 power output to the 4 load. The power consumption is very low in stand-by. Total harmonic distortion is lower than 0.03%. The output structure is BTL (Bridge-Tied Load) mode for driving speaker load mode. Built-in over-temperature protection, package size is not occupies PCB space. It is suitable for small or portable products.
