PT2319

Features: CMOS process technology Low level output signal loss: Typ.=0.003% at VOUT=1Vrms High level output driving ability: load impedance as low as 600Ω Large output amplitude Five stereo input signal ports Volume, balance and fader controls Super bass, bass and treble controls Select Out...

product image

PT2319 Picture
See larger image
SeekIC No. : 004466243 Detail

PT2319: Features: CMOS process technology Low level output signal loss: Typ.=0.003% at VOUT=1Vrms High level output driving ability: load impedance as low as 600Ω Large output amplitude Five stereo i...

PT2319 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2319
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  CMOS process technology
  Low level output signal loss: Typ.=0.003% at VOUT=1Vrms
  High level output driving ability: load impedance as low as 600Ω
  Large output amplitude
  Five stereo input signal ports
  Volume, balance and fader controls
  Super bass, bass and treble controls
  Select Out supports addition of externals circuits
  Built-in automatic power-on reset
  3-wire digital control interface
  36-pin SSOP packaging


Application

High fidelity audio systems
Car audio systems

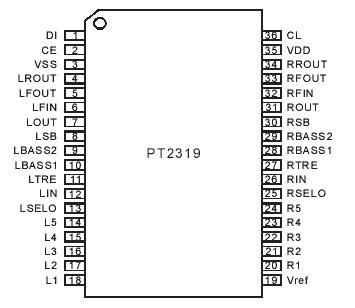

Pinout

Connection Diagram


Description

PT2319 is an audio processor IC specially designed for high fidelity audio applications utilizing advanced CMOS processing technology. Included in the IC are 5 stereo input signal ports, super bass and bass/treble controls, volume control, balance/fader controls and muting.

The internal circuits of PT2319 have undergone meticulous adjustment to achieve the finest possible audio quality. Extremely low signal distortion, strong signal driving ability, and clear dynamic peak and level sound quality at any volume level distinguish PT2319 from other audio processors. PT2319 is the ideal solution for audio systems catering to the most demanding audiophiles.
