Features:

• CMOS Technology
• Stereo Input
• Drive 32 impedance load
• Low noise, Low distortion
• Suppress the pop and click noise when mode changed
• Built-in mute function
• Available in 8 Pins, DIP or SOP Packa




Application

• Portable VCD/DVD
• CD-ROM
• PDA
• Sound Card




Pinout

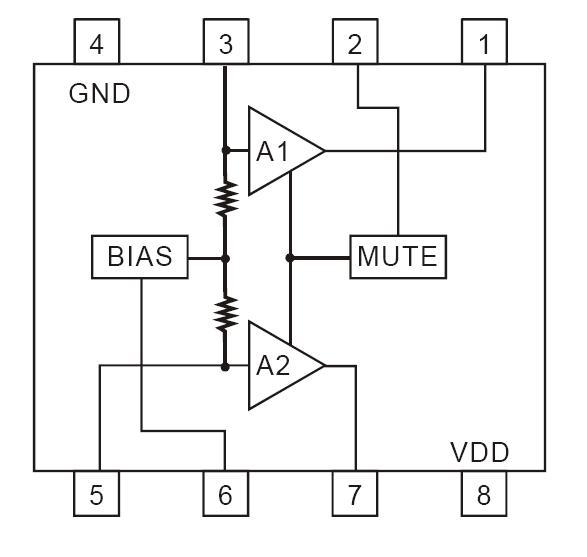

Connection Diagram




Specifications

Parameter Symbol Condition Min. Max. Unit
Supply Voltage VDD 0 7 V
Operating Temperature Topr -40 +85
Storage Temperature Tstg -65 +150
Maximum Input Voltage Vimax -0.3 Vcc+0.3 V
Maximum Input Current Iimax -10 +10 mA





Description

The PT2309 is a headphone driver IC, it can working on wide supply range. Utilizing CMOS Technology, it has very low power consumption is in stand-by mode. Total harmonic distortion is lower than 0.03% (32 load) and the also has low noise output. Built-in mute function can prevents popping sounds happen when power is turned ON or OFF. It is also has built-in over-temperature protection, minimum package size for space saving and suitable for small or portable products.
