Product Details

Description

Features:

• 29 dBm P1dB@7V
• 24 dBm P1dB@3V
• 20 dB gain
• Input matched to 50 ohms
• Simple output matching

Application

• U-NII fixed-wireless CPE
• 5 GHz ISM band wireless equipment
• WLAN/802.11a/HIPERLAN/2

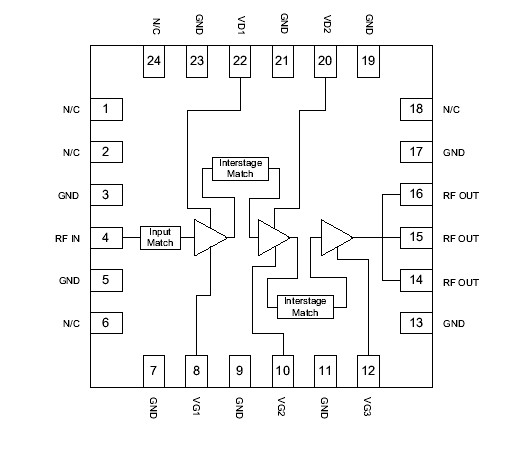

Pinout

Connection Diagram

Specifications

Parameter	Rating	Unit
DC Power Supply DC Gate Voltage DC Supply Current Maximum RF input level Operating Ambient Temperature Storage Temperature	8.0 -5.0 min, -0.5 max 1000 +13 -40 to +85 -55 to +150	V V mA dBm °C °C

Description

The PRFS-1003-0009 power amplifier is a high-power, highperformance GaAs MESFET IC designed for use in transmit applications in the 5.1-5.9 GHz frequency band. With a P1dB of 29 dBm, the device is ideal as a final stage for wireless applications requiring high transmit linearity. The input of the PA is matched to 50 ohms and the output can be easily matched for optimum linearity and power performance at the desired frequency of operation between 5.1 and 5.9 GHz.
