PRFS-1003-0005

Features: • 29 dBm P1dB@7V• 24 dBm P1dB@3V• 20 dB gain• Input matched to 50 ohms• Simple output matchingApplication• U-NII fixed-wireless CPE• 5 GHz ISM band wireless equipment• WLAN/802.11a/HIPERLAN/2PinoutSpecifications Parameter Rating ...

product image

PRFS-1003-0005 Picture
See larger image
SeekIC No. : 004465107 Detail

PRFS-1003-0005: Features: • 29 dBm P1dB@7V• 24 dBm P1dB@3V• 20 dB gain• Input matched to 50 ohms• Simple output matchingApplication• U-NII fixed-wireless CPE• 5 GHz ISM ban...

PRFS-1003-0005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PRFS-1003-0005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 29 dBm P1dB@7V
• 24 dBm P1dB@3V
• 20 dB gain
• Input matched to 50 ohms
• Simple output matching


Application

• U-NII fixed-wireless CPE
• 5 GHz ISM band wireless equipment
• WLAN/802.11a/HIPERLAN/2

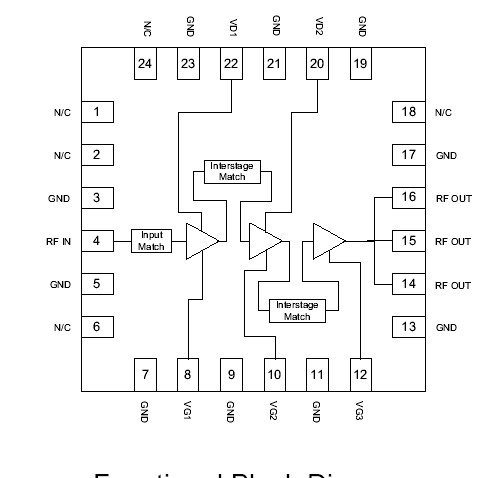

Pinout

Connection Diagram


Specifications

Parameter
Rating
Unit
DC Power Supply
DC Gate Voltage
DC Supply Current
Maximum RF input level
Operating Ambient Temperature
Storage Temperature
8.0
-5.0 min, -0.5 max
1000
+13
-40 to +85
-55 to +150
V
V
mA
dBm
°C
°C



Description

The PRFS-1003-0005 power amplifier is a high-power, highperformance GaAs MESFET IC designed for use in transmit applications in the 5.1-5.9 GHz frequency band. With a P1dB of 29 dBm, the device PRFS-1003-0005 is ideal as a final stage for wireless applications requiring high transmit linearity. The input of the PA is matched to 50 ohms and the output can be easily matched for optimum linearity and power performance at the desired frequency of operation between 5.1 and 5.9 GHz.
