PO74G126A

Features: . Patented technology. Operati ting frequency up to 1.125GH GHz wit ith 2pf load. Operati ting frequency up to 700MHz with 5pf load. Operati ting frequency up to 400MHz with 15pf load. VCC Operates from 1.65V to 3.6V. Propagati tion delay < 1.5ns max with 15pf load. Low input capacita...

product image

PO74G126A Picture
See larger image
SeekIC No. : 004464417 Detail

PO74G126A: Features: . Patented technology. Operati ting frequency up to 1.125GH GHz wit ith 2pf load. Operati ting frequency up to 700MHz with 5pf load. Operati ting frequency up to 400MHz with 15pf load. VCC...

PO74G126A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PO74G126A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

. Patented technology
. Operati ting frequency up to 1.125GH GHz wit ith 2pf load
. Operati ting frequency up to 700MHz with 5pf load
. Operati ting frequency up to 400MHz with 15pf load
. VCC Operates from 1.65V to 3.6V
. Propagati tion delay < 1.5ns max with 15pf load
. Low input capacitance: 4pf typical
. Avail ilable in 14pin 150mil il wide SOIC package


Pinout

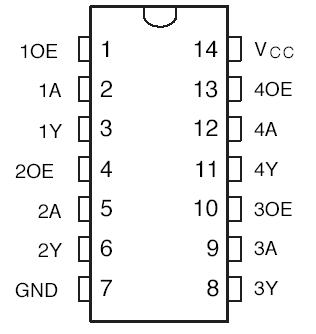

Connection Diagram


Specifications

Description Max Unit
Storage Temperature -65 to 150 °C
Operation Temperature -40 to 85 °C
Operation Voltage -0.5 to +4.6 V
Input Voltage -0.5 to +5.5 V
Output Voltage -0.5 to Vcc+0.5 V



Description

Potato Semiconductor's PO74G126A is designed for world top performance using submicron CMOS technology to achieve 1.125GHz TTL /CMOS output frequency with less than 1.5ns propagati tion delay. This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC CC operation.

The PO74G126A featuresindependent linedriverswith3-stateoutputs. Eachoutput isdisabled isdisabled- whenthe associatedoutput-enable(OE)input islow.

Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V/5V system environment.
