PLL702-02

Features: • Single Low EMI IC to replace multiple crystals andoscillators on Notebooks and Motherboards (27MHz,10MHz, 14.318MHz, 8MHz, 12MHz, 24.576MHz, 25MHz).• Selectable crystal input: 24.576MHz or 14.318MHz(accuracy requirement +/- 20ppm)• Less than 10ppm Frequency Synthesis ...

product image

PLL702-02 Picture
See larger image
SeekIC No. : 004463402 Detail

PLL702-02: Features: • Single Low EMI IC to replace multiple crystals andoscillators on Notebooks and Motherboards (27MHz,10MHz, 14.318MHz, 8MHz, 12MHz, 24.576MHz, 25MHz).• Selectable crystal input...

PLL702-02 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL702-02
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Low EMI IC to replace multiple crystals and
oscillators on Notebooks and Motherboards (27MHz,
10MHz, 14.318MHz, 8MHz, 12MHz, 24.576MHz, 25MHz).
• Selectable crystal input: 24.576MHz or 14.318MHz
(accuracy requirement +/- 20ppm)
• Less than 10ppm Frequency Synthesis error, meeting
AC97, IEEE1394, IEEE802 and USB2.0 frequency0
precision specification.
• 27MHz clock with 5 levels of Selectable Spread
Spectrum modulation form +/- 0.5% to +/- 1.5% center.
• 25MHz clock with double drive strength (Ethernet PHY and MAC).
• 24.576MHz clocks for Audio Codec and IEEE1394.
• 12MHz for USB 2.0.
• Selectable 10MHz and 8MHz for Keyboard controller.
• Dual power source selection for 24.576MHz, 10MHz, and 12MHz.
• Available in 16-Pin SOIC or TSSOP.




Pinout

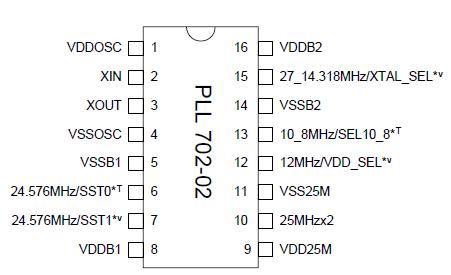

Connection Diagram




Specifications

PARAMETERS SYMBOL MIN. MAX UNITS
Supply Voltage VDD 4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature* TA -40 85 °C
Junction Temperature TJ 125 °C
Lead Temperature (soldering, 10s) 260 °C
ESD Protection, Human Body Model 2 kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and
functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for
COMMERCIAL grade only.
