Features:

• Spread Spectrum Clock Generator/Multiplier with
output selectable from 1x to 8x.
• 13MHz to 240MHz output with output enable.
• 13MHz to 30 MHz reference input frequency
accepted from crystal or external clock signal.
• Reduced EMI from Spread Spectrum Modulation,
with selectable modulation amplitude for Center
Spread, Down Spread or Asymmetric Spread.
• TTL/CMOS compatible outputs.
• 3.3V Operating Voltage.
• 150 ps maximum cycle-to-cycle jitter.
• Available in 16-Pin 150mil SSOP or DIE.




Pinout

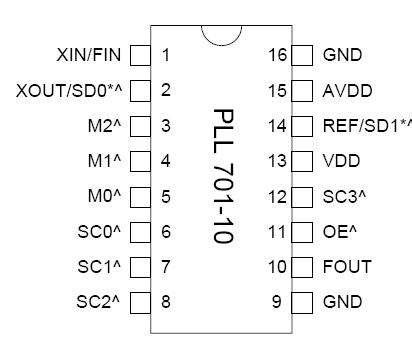

Connection Diagram




Specifications

PARAMETERS SYMBOL MIN. MAX. UNITS
Supply Voltage VDD 4.6 V
Input Voltage, dc -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature Ts -65 150 °C
Ambient Operating Temperature* TA -40 85 °C
Junction Temperature TJ 125 °C
Lead Temperature (soldering, 10s) 260 °C
ESD Protection, Human Body Model 2 kV
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The PLL701-10 is a low EMI Clock Generator and Multiplier for high-speed digital systems. It uses Spread Spectrum Technology (SST) and permits different levels of EMI reduction by selecting the amplitude of the applied SST. The SST PLL701-10 feature can be turned off. An output enable input is also used. The chip operates with input frequencies ranging from 13 to 30 MHz and provides 1x to 8x at its output.
