PIC18F97J60

Features:

• IEEE 802.3 compatible Ethernet Controller
• Integrated MAC and 10Base-T PHY
• 8-Kbyte Transmit/Receive Packet Buffer SRAM
• Supports one 10Base-T Port with Automatic Polarity Detection and Correction
• Programmable Automatic Retransmit on Collision
• Programmable Padding and CRC Generation
• Programmable Automatic Rejection of Erroneous Packets
• Activity Outputs for 2 LED Indicators
• Buffer:
- Configurable transmit/receive buffer size
- Hardware-managed circular receive FIFO
- Byte-wide random and sequential access
- Internal DMA for fast memory copying
- Hardware assisted checksum calculation for various protocols
• MAC:
- Support for Unicast, Multicast and Broadcast packets
- Programmable Pattern Match of up to 64 bytes within packet at user-defined offset
- Programmable wake-up on multiple packet formats
• PHY:
- Wave shaping output filter
- Loopback mode
• 5.5V Tolerant Inputs (digital-only pins)
• Low-Power, High-Speed CMOS Flash Technology:
- Self-reprogrammable under software control
• C compiler Optimized Architecture for re-entrant code
• Power Management Features:
- Run: CPU on, peripherals on
- Idle: CPU off, peripherals on
- Sleep: CPU off, peripherals off
• Priority Levels for Interrupts
• 8 x 8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 134s
• Single-Supply 3.3V In-Circuit Serial Programming™ (ICSP™) via two pins
• In-Circuit Debug (ICD) with 3 Breakpoints via two pins
• Operating Voltage Range of 2.35V to 3.6V (3.14V to 3.45V using Ethernet module)
• On-Chip 2.5V Regulator

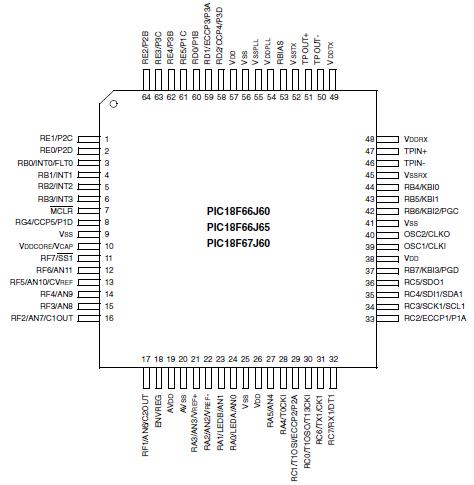

Pinout






Specifications

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	128
CPU Speed (MIPS)	10.5
RAM Bytes	3,808
Digital Communication Peripherals	2-A/E/USART, 2-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals	2 CCP, 3 ECCP
Timers	2 x 8-bit, 3 x 16-bit
ADC	16 ch, 10-bit
Comparators	2
Ethernet	10 Base T
Temperature Range (C)	-40 to 85
Operating Voltage Range (V)	2 to 3.6
Pin Count	100

Description

Feature rich PIC18F97J60 Microcontroller with an integrated 10Mbps Ethernet communications peripheral. This PIC18F97J60 is ideal for applications requiring remote control and monitoring. Target applications include Idustrial Automation, Building Automation, Home control, Security and Instrumentation.Ethernet Application Design Center
