PIC18F6722

Features:

• C compiler optimized architecture:
- Optional extended instruction set designed tooptimize re-entrant code
• 100,000 erase/write cycle Enhanced Flash programmemory typical
• 1,000,000 erase/write cycle Data EEPROM memory ypical
• Flash/Data EEPROM Retention: 100 years typical
• Self-programmable under software control
• Priority levels for interrupts
• 8 X 8 Single Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 131s
• Single-supply In-Circuit Serial Programming™(ICSP™) via two pins
• In-Circuit Debug (ICD) via two pins
• Wide operating voltage range: 2.0V to 5.5V

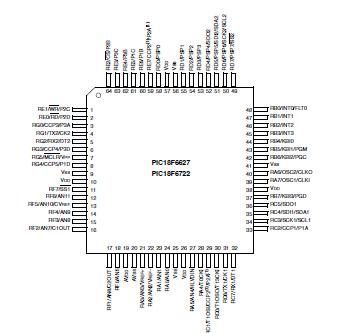

Pinout






Specifications

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	128
CPU Speed (MIPS)	10
RAM Bytes	3,936
Data EEPROM (bytes)	1024
Digital Communication Peripherals	2-A/E/USART, 2-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals	2 CCP, 3 ECCP
Timers	2 x 8-bit, 3 x 16-bit
ADC	12 ch, 10-bit
Comparators	2
Temperature Range (C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	64

Ambient temperature under bias.......................................................................................................-40°C to +125°C
Storage temperature ....................................................................................................................... -65°C to +150°C
Voltage on any pin with respect to V_SS (except V_DD and MCLR) ................................................... -0.3V to (V_DD + 0.3V)
Voltage on V_DD with respect to V_SS ........................................................................................................ -0.3V to +7.5V
Voltage onMCLR with respect to V_SS (Note 2) ........................................................................................ 0V to +13.25V
Total power dissipation (Note 1) .............................................................................................................................1.0W
Maximum current out of V_SS pin ...........................................................................................................................300 mA
Maximum current into V_DD pin .............................................................................................................................250 mA
Input clamp current, I_IK (V_I < 0 or V_I > V_DD)...................................................................................................... ±20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD) ................................................................................................ ±20 mA
Maximum output current sunk by any I/O pin.........................................................................................................25 mA
Maximum output current sourced by any I/O pin ...................................................................................................25 mA
Maximum current sunk by all ports ......................................................................................................................200 mA
Maximum current sourced by all ports ..................................................................................................................200 mA

Note 1: Power dissipation is calculated as follows:Pdis = V_DD x {I_DD I_OH} + {(V_DD V_OH) x I_OH} + (V_OL x I_OL)
2: Voltage spikes below V_SS at the MCLR/V_PP/RG5 pin, inducing currents greater than 80 mA, may causelatch-up. Thus, a series resistor of 50-100 should be used when applying a "low" level to the MCLR/V_PP/RG5 pin, rather than pulling this pin directly to V_SS.

† NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to thedevice. This is a stress rating only and functional operation of the device at those or any other conditions above thoseindicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions forextended periods may affect device reliability.

Description

Ideal for large low power (nanoWatt) and connectivity applications that benefit from the availability of four serial ports: double synchronous serial ports (I2C? and SPI?) and double asynchronous (LIN capable) serial ports. Large amounts of RAM memory for buffering and FLASH program memory make PIC18F6722 ideal for instrumentation panels, TCP/IP enabled embedded applications as well as metering and industrial control and monitoring applications. While operating up to 40 MHz, PIC18F6722 is also backward software and hardware compatible with the PIC18F6720.

This document contains device specific information for he following devices:
• PIC18F6627 • PIC18LF6627
• PIC18F6722 • PIC18LF6722
• PIC18F8627 • PIC18LF8627
• PIC18F8722 • PIC18LF8722

This PIC18F6722 offers the advantages of all PIC18 microcontrollers namely, high computational performanceat an economical price with the addition of highendurace,Enhanced Flash program memory. On topof these features, the PIC18F6722 introduces design enhancements that makethese microcontrollers a logical choice for many highperformance,power sensitive applications.
