PIC18F6621

Features: • High current sink/source 25 mA/25 mA• Four external interrupt pins• Timer0 module: 8-bit/16-bit timer/counter• Timer1 module: 16-bit timer/counter• Timer2 module: 8-bit timer/counter• Timer3 module: 16-bit timer/counter• Timer4 module: 8-bit ti...

product image

PIC18F6621 Picture
See larger image
SeekIC No. : 004462350 Detail

PIC18F6621: Features: • High current sink/source 25 mA/25 mA• Four external interrupt pins• Timer0 module: 8-bit/16-bit timer/counter• Timer1 module: 16-bit timer/counter• Timer2 m...

PIC18F6621 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIC18F6621
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High current sink/source 25 mA/25 mA
• Four external interrupt pins
• Timer0 module: 8-bit/16-bit timer/counter
• Timer1 module: 16-bit timer/counter
• Timer2 module: 8-bit timer/counter
• Timer3 module: 16-bit timer/counter
• Timer4 module: 8-bit timer/counter
• Secondary oscillator clock option Timer1/Timer3
• Two Capture/Compare/PWM (CCP) modules:
- Capture is 16-bit, max. resolution 6.25 ns (TCY/16)
- Compare is 16-bit, max. resolution 100 ns (TCY)
- PWM output: 1 to 10-bit PWM resolution
• Three Enhanced Capture/Compare/PWM (ECCP) modules:
- Same Capture/Compare features as CCP
- One, two or four PWM outputs
- Selectable polarity
- Programmable dead time
- Auto-Shutdown on external event
- Auto-Restart
• Master Synchronous Serial Port (MSSP) module with two modes of operation:
- 2/3/4-wire SPI™ (supports all 4 SPI modes)
- I2C™ Master and Slave mode
• Two Enhanced USART modules:
- Supports RS-485, RS-232 and LIN 1.2
- Auto-Wake-up on Start bit
- Auto-Baud Rate Detect
• Parallel Slave Port (PSP) module
• 100,000 erase/write cycle Enhanced Flash program memory typical
• 1,000,000 erase/write cycle Data EEPROM memory typical
• 1 second programming time
• Flash/Data EEPROM Retention: > 100 years
• Self-reprogrammable under software control
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation
• Programmable code protection
• Power-saving Sleep mode
• Selectable oscillator options including:
-4x Phase Lock Loop (PLL) of primary oscillator
- Secondary Oscillator (32 kHz) clock input
• In-Circuit Serial Programming™ (ICSP™) via two pins
• MPLAB® In-Circuit Debug (ICD 2) via two pins




Pinout

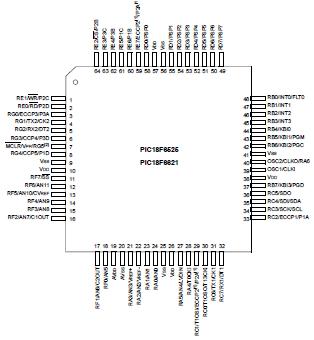

Connection Diagram




Specifications

Parameter Name Value
Program Memory Type Flash
Program Memory (KB) 64
CPU Speed (MIPS) 10
RAM Bytes 3,840
Data EEPROM (bytes) 1024
Digital Communication Peripherals 2-A/E/USART, 1-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals 2 CCP, 3 ECCP
Timers 2 x 8-bit, 3 x 16-bit
ADC 12 ch, 10-bit
Comparators 2
Temperature Range (C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 64


Ambient temperature under bias.....................................................................................................-40°C to +125°C
Storage temperature ..................................................................................................................... -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD, MCLR and RA4) ......................................... -0.3V to (VDD + 0.3V)
Voltage on VDD with respect to VSS ...................................................................................................... -0.3V to +5.5V
Voltage onMCLR with respect to VSS (Note 2) ...................................................................................... 0V to +13.25V
Voltage on RA4 with respect to VSS............................................................................................................ 0V to +8.5V
Total power dissipation (Note1) ............................................................................................................................1.0W
Maximum current out of VSS pin .........................................................................................................................300 mA
Maximum current into VDD pin ............................................................................................................................250 mA
Input clamp current, IIK (VI < 0 or VI > vDD)..................................................................................................... ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) ............................................................................................... ±20 mA
Maximum output current sunk by any I/O pin.........................................................................................................25 mA
Maximum output current sourced by any I/O pin ...................................................................................................25 mA
Maximum current sunk by all ports .......................................................................................................................200 mA
Maximum current sourced by all ports ..................................................................................................................200 mA

Note 1: Power dissipation is calculated as follows:Pdis = VDD x {IDD IOH} + {(VDD VOH) x IOH} + (VOL x IOL)
2: Voltage spikes below VSS at the MCLR/VPP pin, inducing currents greater than 80 mA, may cause latch-up.Thus, a series resistor of 50-100 should be used when applying a "low" level to the MCLR/VPP pin, rather than pulling this pin directly to VSS.






Description

This document contains device specific information for the following devices:
• PIC18F6525
• PIC18F6621
• PIC18F8525
• PIC18F8621

This PIC18F6621 offers the advantages of all PIC18 microcontrollers namely, high computational performance at an economical price with the addition of high-endurance Enhanced Flash program memory. The PIC18F6621 also provides an enhanced range of program memory options and versatile analog features that make it ideal for complex, high performance applications .
