PIC18F45J10

Features:

·Operating voltage range: 2.0V to 3.6V
·5.5V tolerant input (digital pins only)
·On-chip 2.5V regulator
·Low-power, high-speed CMOS Flash technology
·C compiler optimized architecture:
-Optional extended instruction set designed to optimize re-entrant code
·Priority levels for interrupts
·8 x 8 Single-Cycle Hardware Multiplier
·Extended Watchdog Timer (WDT):
-Programmable period from 4ms to 131s
·Single-Supply In-Circuit Serial Programming^TM(ICSP^TM) via two pins
·In-Circuit Debug (ICD) with three Break points via two pins
·Power-Managed modes:
-Run: CPU on, peripherals on
-Idle: CPU off, peripherals on
-Sleep: CPU off, peripherals off

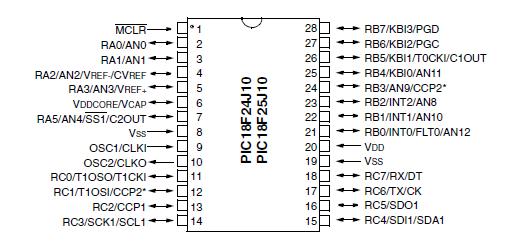

Pinout






Specifications

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	32
CPU Speed (MIPS)	10
RAM Bytes	1,024
Digital Communication Peripherals	1-A/E/USART, 2-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals	1 CCP, 1 ECCP
Timers	1 x 8-bit, 2 x 16-bit
ADC	13 ch, 10-bit
Comparators	2
Temperature Range (C)	-40 to 85
Operating Voltage Range (V)	2 to 3.6
Pin Count	40

Description

Ideal for customers that require low cost, high speed, and enhanced serial communication peripherals. The PIC18F45J10 runs at 40MHz at 3V and has an enhanced USART with LIN capability and two synchronous serial ports with address masking for the I2C. PIC18F45J10 is a low cost general purpose solution for designs with 1k Flash endurance, emulated EEPROM, and external crystal or clock source, for cost sensitive applications.
