PIC18F4431

Features: • 100,000 erase/write cycle enhanced Flash program memory typical• 1,000,000 erase/write cycle data EEPROM memory typical• Flash/data EEPROM retention: 100 years• Self-programmable under software control• Priority levels for interrupts• 8 X 8 Single-cy...

product image

PIC18F4431 Picture
See larger image
SeekIC No. : 004462249 Detail

PIC18F4431: Features: • 100,000 erase/write cycle enhanced Flash program memory typical• 1,000,000 erase/write cycle data EEPROM memory typical• Flash/data EEPROM retention: 100 years• S...

PIC18F4431 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIC18F4431
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 100,000 erase/write cycle enhanced Flash program memory typical
• 1,000,000 erase/write cycle data EEPROM memory typical
• Flash/data EEPROM retention: 100 years
• Self-programmable under software control
• Priority levels for interrupts
• 8 X 8 Single-cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):- Programmable period from 41 ms to 131s
• Single-supply In-Circuit Serial Programming™ (ICSP™) via two pins
• In-Circuit Debug (ICD) via two pins- Drives PWM outputs safely when debugging

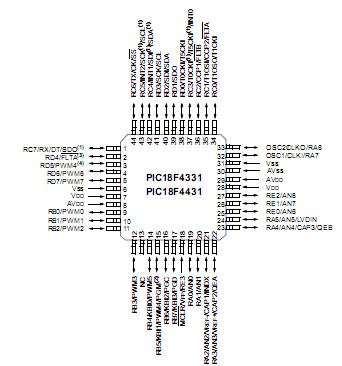

Pinout

Connection Diagram






Specifications

Parameter Name Value
Program Memory Type Flash
Program Memory (KB) 16
CPU Speed (MIPS) 10
RAM Bytes 768
Data EEPROM (bytes) 256
Digital Communication Peripherals 1-A/E/USART, 1-SSP(SPI/I2C)
Capture/Compare/PWM Peripherals 2 CCP
Timers 1 x 8-bit, 3 x 16-bit
ADC 9 ch, 10-bit
Temperature Range (C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 40
