Product Details

Description



Features:

Peripheral Features:
• High current sink/source 25 mA/25 mA
• Up to 76 I/O with individual direction control
• Four external interrupt pins
• Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler
• Timer1 module: 16-bit timer/counter
• Timer2 module: 8-bit timer/counter with 8-bit period register (time base for PWM)
• Timer3 module: 16-bit timer/counter
• Secondary oscillator clock option - Timer1/Timer3
• Two Capture/Compare/PWM (CCP) modules CCP pins can be configured as:
- Capture input: 16-bit, max resolution 6.25 ns
- Compare is 16-bit, max resolution 100 ns (TCY)
- PWM output: PWM resolution is 1- to 10-bit. Max. PWM freq. @:8-bit resolution = 156 kHz 10-bit resolution = 39 kHz
• Master Synchronous Serial Port (MSSP) with two modes of operation:
- 3-wire SPI™ (Supports all 4 SPI modes)
- I2C™ Master and Slave mode
• Addressable USART module: Supports Interrupt on Address bit
Advanced Analog Features:
• 10-bit Analog-to-Digital Converter module (A/D) with:
- Fast sampling rate
- Conversion available during SLEEP
- DNL = ±1 LSb, INL = ±1 LSb
- Up to 16 channels available
• Analog Comparator Module:
- 2 Comparators
- Programmable input and output multiplexing
• Comparator Voltage Reference Module
• Programmable Low Voltage Detection (LVD) module
- Supports interrupt on low voltage detection
• Programmable Brown-out Reset (BOR) CAN BUS Module Features:
• Message bit rates up to 1 Mbps
• Conforms to CAN 2.0B ACTIVE Spec with:
- 29-bit Identifier Fields
- 8 byte message length
• 3 Transmit Message Buffers with prioritization
• 2 Receive Message Buffers
• 6 full 29-bit Acceptance Filters
• Prioritization of Acceptance Filters
• Multiple Receive Buffers for High Priority Messages to prevent loss due to overflow
• Advanced Error Management Features Special Microcontroller Features:
• Power-on Reset (POR), Power-up Timer (PWRT),and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator
• Programmable code protection
• Power saving SLEEP mode
• Selectable oscillator options, including:
- 4X Phase Lock Loop (of primary oscillator)
- Secondary Oscillator (32 kHz) clock input
• In-Circuit Serial Programming (ICSP™) via two pins



Pinout

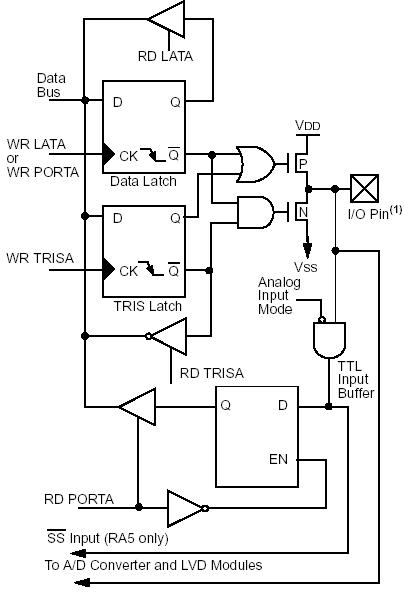

  Connection Diagram


Specifications

Ambient temperature under bias.........................................................................................................-55°C to +125°C
Storage temperature ......................................................................................................................... -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD, MCLR , and RA4) ......................................... -0.3V to (VDD + 0.3V)
Voltage on VDD with respect to VSS ........................................................................................................ -0.3V to +7.5V
Voltage on MCLR with respect to VSS (Note 2) ..........................................................................................0V to +13.25V
Voltage on RA4 with respect to Vss...............................................................................................................0V to +8.5V
Total power dissipation (Note 1) ..............................................................................................................................1.0W
Maximum current out of VSS pin ...........................................................................................................................300 mA
Maximum current into VDD pin ..............................................................................................................................250 mA
Input clamp current, IIK (VI < 0 or VI > VDD)....................................................................................................... ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) ................................................................................................ ±20 mA
Maximum output current sunk by any I/O pin...........................................................................................................25 mA
Maximum output current sourced by any I/O pin .....................................................................................................25 mA
Maximum current sunk by all ports (combined) ......................................................................................................200 mA
Maximum current sourced by all ports (combined) .................................................................................................200 mA
