PIC17C752

Features:

* Only 58 single word instructions to learn
* All single cycle instructions (121 ns) except for program branches and table reads/writes which are two-cycle
* Operating speed:
- DC - 33 MHz clock input
- DC - 121 ns instruction cycle
* Hardware Multiplier
* Interrupt capability
* 16 level deep hardware stack
* Direct, indirect, and relative addressing modes
* Internal/external program memory execution
* Capable of addressing 64K x 16 program memory space.

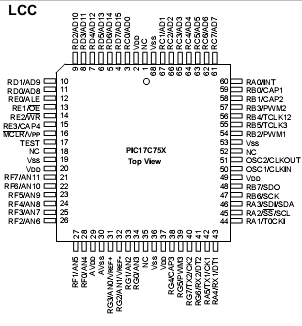

Pinout






Specifications

Ambient temperature under bias...............................................-55 to +125
Storage temperature............................................................ -65?C to +150
Voltage on V_DD with respect to V_SS .............................................. 0 to +7.5V
Voltage on MCLR with respect to VSS (Note 2).........................-0.3V to +14V
Voltage on RA2 and RA3 with respect to V_SS.............................-0.3V to +14V
Voltage on all other pins with respect to V_SS ..................-0.3V to VDD + 0.3V
Total power dissipation (Note 1)..............................................................1.0W
Maximum current out of VSS pin(s) - total (@ 70).............................500 mA
Maximum current into V_DD pin(s) - total (@ 70).................................500 mA
Input clamp current, IIK (V_I < 0 or V_I > V_DD)....................................... 20 mA
Output clamp current, IOK (V_O < 0 or V_O > V_DD)................................. 20 mA
Maximum output current sunk by any I/O pin (except RA2 and RA3)........35 mA
Maximum output current sunk by RA2 or RA3 pins....................................60 mA
Maximum output current sourced by any I/O pin .....................................20 mA
Maximum current sunk by PORTA and PORTB (combined)........................150 mA
Maximum current sourced by PORTA and PORTB (combined)...................100 mA
Maximum current sunk by PORTC, PORTD and PORTE (combined)............150 mA
Maximum current sourced by PORTC, PORTD and PORTE (combined).......100 mA
Maximum current sunk by PORTF and PORTG (combined).........................150 mA
Maximum current sourced by PORTF and PORTG (combined)....................100 mA

Parameter Name	Value
Program Memory Type	OTP
Program Memory (KB)	0
CPU Speed (MIPS)	8.25
RAM Bytes	678
Digital Communication Peripherals	2-A/E/USART, 1-MSSP(SPI/I2C)
Timers	2 x 8-bit, 2 x 16-bit
ADC	12 ch, 10-bit
Temperature Range (C)	-40 to 85
Operating Voltage Range (V)	3 to 5.5
Pin Count	64

Description

A newer device is available. Please consider PIC18F6520.This powerful 8.25 MIPS (121 nanosecond instruction execution) yet easy-to-program (only 58 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip's powerful PIC? architecture into an 64- or 68-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16CXX devices. PIC17C752 features additional timers, 4 capture functions, 3 PWM functions, External Memory Addressing, 12 channels of 10-bit Analog-to-Digital (A/D) converter, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI?) or the 2-wire Inter-Integrated Circuit (I2C?) bus and 2 Universal Asynchronous Receiver Transmitter (USART). All of these features make PIC17C752 ideal for demanding real-time embedded control applications from precise motor control and industrial control to automotive, instrumentation and telecom applications.
