PIC16LC74B-PTL16

Features: • High-performance RISC CPU• Specially tested - 16MHz @ 3V• Only 35 single word instructions to learn• All single cycle instructions except for program branches which are two cycle• Operating speed: DC - 16 MHz clock input DC - 250 ns instruction cycle•...

product image

PIC16LC74B-PTL16 Picture
See larger image
SeekIC No. : 004462022 Detail

PIC16LC74B-PTL16: Features: • High-performance RISC CPU• Specially tested - 16MHz @ 3V• Only 35 single word instructions to learn• All single cycle instructions except for program branches whi...

PIC16LC74B-PTL16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIC16LC74B-PTL16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-performance RISC CPU
• Specially tested
    - 16MHz @ 3V
• Only 35 single word instructions to learn
• All single cycle instructions except for program branches which are two cycle
• Operating speed: DC - 16 MHz clock input DC - 250 ns instruction cycle
• 4K x 14 words of Program Memory, 192 x 8 bytes of Data Memory (RAM)
• Interrupt capability
• Eight level deep hardware stack
• Direct, indirect and relative addressing modes
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code-protection
• Power saving SLEEP mode
• Selectable oscillator options
• Low-power, high-speed CMOS EPROM technology
• Wide operating voltage range: 2.5V to 5.5V
• High Sink/Source Current 25/25 mA
• Commercial, Industrial and Automotive temperature ranges
• Low-power consumption:
    - < 5 mA @ 5V, 4 MHz
    - 23 mA typical @ 3V, 32 kHz
    - < 3 mA typical standby current


Pinout

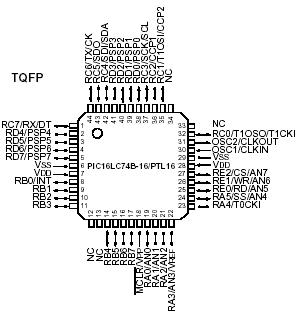

Connection Diagram


Description

This data sheet covers the PIC16LC74B-16/PIC16LC74B-PTL16 device. The functional characteristics of this device are identical to the PIC16LC74B. For electrical specifications, see the electrical specifications contained within this document. For all other information about this device, see the PIC16C63A/65B/73B/74B data sheet (DS30605).
