Product Details

Description



Features:

• Precision Internal Oscillator:
   - Factory calibrated to ±1%, typical
   - Software selectable frequency: 4 MHz or 8 MHz
• Power-Saving Sleep mode
• Voltage range:
   - PIC16F616: 2.0V to 5.5V
   - PIC16HV616: 2.0V to user defined maximum
• Industrial and Extended Temperature range
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR)
• Watchdog Timer (WDT) with independent oscillator for reliable operation
• Multiplexed Master Clear with pull-up/input pin
• Programmable code protection
• High Endurance Flash:
   - 100,000 write Flash endurance
   - Flash retention: > 40 years
• Standby Current:
   - 50 nA @ 2.0V, typical
• Operating Current:
   - 20A @ 32 kHz, 2.0V, typical
   - 220A @ 4 MHz, 2.0V, typical
• Watchdog Timer Current:
   - 1A @ 2.0V, typical
• Shunt Voltage Regulator (PIC16HV616 only):
   - 5 volt regulation
   - 4 mA to 50 mA shunt range
• 11 I/O pins and 1 input only
• High current source/sink for direct LED drive
   - Interrupt-on-Change pin
   - Individually programmable weak pull ups
• Analog Comparator module with:
   - Two analog comparators
   - Programmable on-chip voltage reference (CVREF) module (% of VDD)
   - Comparator inputs and outputs externally accessible
   - SR Latch
   - Built-In Hysteresis (user selectable)
• A/D Converter:
   - 10-bit resolution and 8 channels
• Timer0: 8-bit timer/counter with 8-bit programmable prescaler
• Enhanced Timer1:
   - 16-bit timer/counter with prescaler
   - External Timer1 Gate (count enable)
   - Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected
   - Option to use system clock as Timer1
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Enhanced Capture, Compare, PWM module:
   - 16-bit Capture, max resolution 12.5 ns
   - Compare, max resolution 200 ns
   - 10-bit PWM with 1, 2 or 4 output channels, programmable "dead time", max frequency 20 kHz
• In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

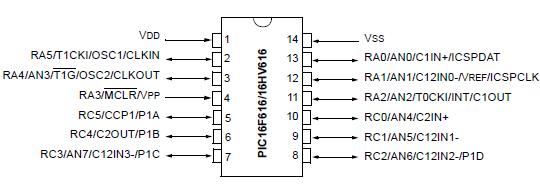

Pinout

Connection Diagram


Specifications

Ambient temperature under bias.........................................................................-40° to +125°C
Storage temperature ....................................................................................... -65°C to +150°C
Voltage on VDD with respect to VSS ........................................................................ -0.3V to +6.5V
Voltage on MCLR with respect to Vss .................................................................... -0.3V to +13.5V
Voltage on all other pins with respect to VSS ................................................. -0.3V to (VDD + 0.3V)
Total power dissipation(1) ................................................................................................. 800 mW
Maximum current out of VSS pin ............................................................................................ 95 mA
Maximum current into VDD pin ................................................................................................ 95 mA
Input clamp current, IIK (VI < 0 or VI > VDD)........................................................................± 20 mA
Output clamp current, IOK (Vo < 0 or Vo >VDD).....................................................................± 20 mA
Maximum output current sunk by any I/O pin............................................................................ 25 mA
Maximum output current sourced by any I/O pin ...................................................................... 25 mA
Maximum current sunk by PORTA and PORTC (combined) ......................................................... 90 mA
Maximum current sourced PORTA and PORTC (combined) ......................................................... 90 mA

Note 1: Power dissipation is calculated as follows: PDIS = VDD x {IDD IOH} + {(VDD VOH) x IOH} + (VOl x IOL).

† NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operation listings of this specification is not implied. Exposure above maximum rating conditions for
extended periods may affect device reliability.




Description

The PIC16F616/PIC16HV616 is covered by this data sheet. It is available in 14-pin PDIP, SOIC, TSSOP and QFN packages. Figure 1-1 shows a block diagram of the PIC16F616/16HV616 device. Table 1-1 shows the pinout description.
