Product Details

Description



Features:

Peripheral Features:
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler,can be incremented during SLEEP via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Two Capture, Compare, PWM modules
   - Capture is 16-bit, max. resolution is 12.5 ns
   - Compare is 16-bit, max. resolution is 200 ns
   - PWM max. resolution is 10-bit
• Synchronous Serial Port (SSP) with SPI™ (Master mode) and I2C™ (Master/Slave)
• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)
• Brown-out detection circuitry for Brown-out Reset (BOR)
Analog Features:
• 10-bit, up to 8 channel Analog-to-Digital Converter (A/D)
• Brown-out Reset (BOR)
• Analog Comparator module with:
   - Two analog comparators
   - Programmable on-chip voltage reference (VREF) module
   - Programmable input multiplexing from device inputs and internal voltage reference
   - Comparator outputs are externally accessible
Special Microcontroller Features:
• 100,000 erase/write cycle Enhanced FLASH program memory typical
• 1,000,000 erase/write cycle Data EEPROM memory typical
• Data EEPROM Retention > 40 years
• Self-reprogrammable under software control
• In-Circuit Serial Programming™ (ICSP™) via two pins
• Single supply 5V In-Circuit Serial Programming
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving SLEEP mode
• Selectable oscillator options
• In-Circuit Debug (ICD) via two pins

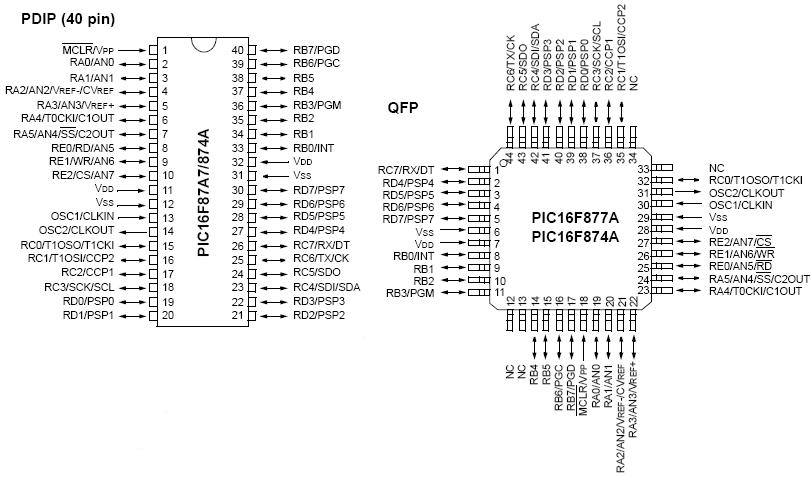

Pinout

  Connection Diagram  Connection Diagram


Specifications

Ambient temperature under bias...................................................................................................-55 to +125°C
Storage temperature ................................................................................................................ -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4) .............................. -0.3V to (VDD + 0.3V)
Voltage on VDD with respect to VSS ............................................................................................... -0.3 to +7.5V
Voltage on MCLR with respect to VSS ...................................................................................................0 to +14V
Voltage on RA4 with respect to Vss .....................................................................................................0 to +8.5V
Total power dissipation ................................................................................................................................1.0W
Maximum current out of VSS pin ...............................................................................................................300 mA
Maximum current into VDD pin ..................................................................................................................250 mA
Input clamp current, IIK (VI < 0 or VI > VDD)............................................................................................ ± 20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) ...................................................................................... ± 20 mA
Maximum output current sunk by any I/O pin...............................................................................................25 mA
Maximum output current sourced by any I/O pin ..........................................................................................25 mA
Maximum current sunk by PORTA, PORTB, and PORTE (combined) . ............................................................200 mA
Maximum current sourced by PORTA, PORTB, and PORTE (combined)..........................................................200 mA
Maximum current sunk by PORTC and PORTD (combined) ...........................................................................200 mA
Maximum current sourced by PORTC and PORTD (combined)  .....................................................................200 mA
