PIC16F87

Features:

Low-Power Features:
• Power-Managed modes:
- Primary Run: RC oscillator, 76 A, 1 MHz, 2V
- RC_RUN: 7 A, 31.25 kHz, 2V
- SEC_RUN: 9 A, 32 kHz, 2V
- Sleep: 0.1 A, 2V
• Timer1 Oscillator: 1.8 A, 32 kHz, 2V
• Watchdog Timer: 2.2 A, 2V
• Two-Speed Oscillator Start-up

Peripheral Features:
• Capture, Compare, PWM (CCP) module:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
• 10-bit, 7-channel Analog-to-Digital Converter
• Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)
• Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART/SCI) with 9-bit address detection:
- RS-232 operation using internal oscillator (no external crystal required)
• Dual Analog Comparator module:
- Programmable on-chip voltage reference
- Programmable input multiplexing from device inputs and internal voltage reference

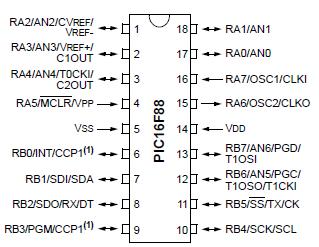

- Comparator outputs are externally accessible Pin Diagram

Special Microcontroller Features:
• 100,000 erase/write cycles Enhanced Flash program memory typical
• 1,000,000 typical erase/write cycles EEPROM data memory typical
• EEPROM Data Retention: > 40 years
• In-Circuit Serial Programming™ (ICSP™) via two pins
• Processor read/write access to program memory
• Low-Voltage Programming
• In-Circuit Debugging via two pins
• Extended Watchdog Timer (WDT):
- Programmable period from 1 ms to 268s
• Wide operating voltage range: 2.0V to 5.5V

Pinout






Specifications

Absolute Maximum Ratings †
Ambient temperature under bias.....................................................-40°C to +125°C
Storage temperature ..................................................................... -65°C to +150°C
Voltage on any pin with respect to V_SS (except V_DD and MCLR)..-0.3V to (V_DD + 0.3V)
Voltage on V_DD with respect to V_SS ........................................................ -0.3 to +7.5V
Voltage onMCLR with respect to V_SS(Note 2)...........................................-0.3 to +14V
Total power dissipation (Note 1) ..............................................................................1W
Maximum current out of V_SS pin ..........................................................................200 mA
Maximum current into V_DD pin .............................................................................200 mA
Input clamp current, I_IK (V_I < 0 or V_I > V_DD)....................................................... ±20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD)...................................................±20 mA
Maximum output current sunk by any I/O pin...........................................................25 mA
Maximum output current sourced by any I/O pin......................................................25 mA
Maximum current sunk by PORTA.............................................................................100 mA
Maximum current sourced by PORTA........................................................................100 mA
Maximum current sunk by PORTB.............................................................................100 mA
Maximum current sourced by PORTB .......................................................................100 mA

Note 1: Power dissipation is calculated as follows: Pdis = V_DD x {I_DD I_OH} + {(V_DD V_OH) x I_OH} + (V_OL x I_OL)
2: Voltage spikes at theMCLR pin may cause latch-up. A series resistor of greater than 1 k should be used
to pullMCLR to V_DD, rather than tying the pin directly to V_DD.

† NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for
extended periods may affect device reliability.

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	7
CPU Speed (MIPS)	5
RAM Bytes	368
Data EEPROM (bytes)	256
Digital Communication Peripherals	1-A/E/USART, 1-SSP(SPI/I2C)
Capture/Compare/PWM Peripherals	1 CCP
Timers	2 x 8-bit, 1 x 16-bit
Comparators	2
Temperature Range (C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	18

Description

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip's powerful PIC16F87 architecture into an 18-pin package and is upwards compatible with the PIC16C7x, PIC16C62xA, PIC16C5X and PIC12CXXX devices. The PIC16F87 features 8MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an Addressable USART and 2 Comparators that make it ideal for advantage analog / integrated level applications in automotive, industrial, appliances and consumer applications.
