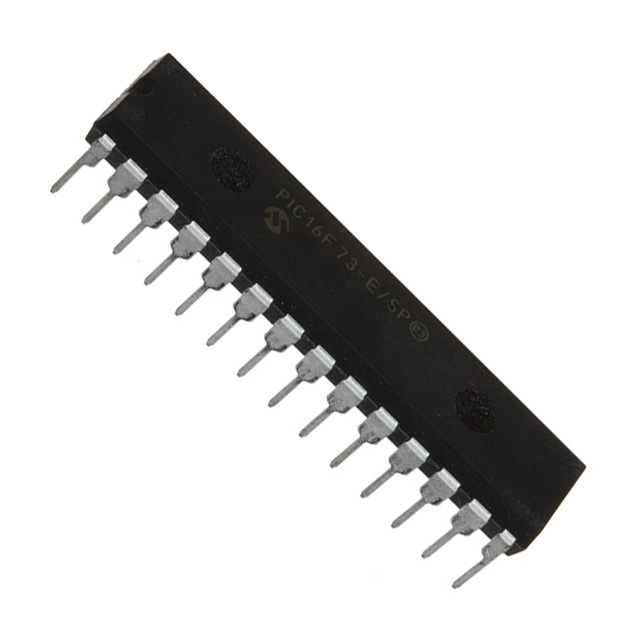

PIC16F73-I/SO: 8-bit Microcontrollers (MCU) 7KB 192 RAM 22 I/O
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SpecificationsDescriptionThe PIC1018SCL is one member of the PIC1018 family which is designed as o...
Core : | PIC16 | Processor Series : | PIC16 | ||
Data Bus Width : | 8 bit | Maximum Clock Frequency : | 20 MHz | ||
Program Memory Size : | 7 KB | Data RAM Size : | 192 B | ||
On-Chip ADC : | Yes | Operating Supply Voltage : | 4 V to 5.5 V | ||
Package / Case : | SOIC-28 Wide | Mounting Style : | SMD/SMT |
The PIC16F73-I/SO is designed as one kind of 28/40-pin, 8-bit CMOS FLASH Microcontroller that is available in 40-pin and 44-pin packages. This device has some points of features:(1)power-on reset (POR); (2)power-up timer (PWRT) and oscillator start-up timer (OST); (3)watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation; (4)programmable code protection; (5)power saving SLEEP mode; (6)selectable oscillator options; (7)in-circuit serial programming (ICSP) via two pins;(8)Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI);(9)8-bit, up to 8-channel Analog-to-Digital converter;(10)Timer0: 8-bit timer/counter with 8-bit prescaler.
The absolute maximum ratings of the PIC16F73-I/SO can be summarized as:(1)Ambient temperature under bias: -55 to +125°C;(2)Storage temperature: -65°C to +150°C;(3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3 V to (VDD + 0.3 V);(4)Voltage on VDD with respect to VSS: -0.3 to +6.5 V;(5)Maximum current sourced by PORTC and PORTD (combined): 200 mA;(6)Maximum current sunk by PORTC and PORTD (combined): 200 mA;(7)Maximum current sourced by PORTA, PORTB, and PORTE: 200 mA;(8)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA;(9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA;(10)Total power dissipation: 1.0 W. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
Technical/Catalog Information | PIC16F73-I/SO |
Vendor | Microchip Technology |
Category | Integrated Circuits (ICs) |
Program Memory Size | 7KB (4K x 14) |
RAM Size | 192 x 8 |
Number of I /O | 22 |
Package / Case | 28-SOIC (7.5mm Width) |
Speed | 20MHz |
Controller Series | PIC16F |
Oscillator Type | External |
Packaging | Tube |
Program Memory Type | FLASH |
EEPROM Size | - |
Core Processor | PIC |
Data Converters | A/D 5x8b |
Core Size | 8-Bit |
Operating Temperature | -40°C ~ 85°C |
Connectivity | I²C, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V |
Drawing Number | * |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | PIC16F73 I SO PIC16F73ISO |
