PIC16F716

Features:

Microcontroller Core Features:
• High-performance RISC CPU
• Only 35 single-word instructions to learn
- All single-cycle instructions except for
program branches which are two-cycle
• Operating speed: DC - 20 MHz clock input
DC - 200 ns instruction cycle
• Interrupt capability
(up to 7 internal/external interrupt sources)
• 8-level deep hardware stack
• Direct, Indirect and Relative Addressing modes

Low-Power Features:
• Standby Current:
- 100 nA @ 2.0V, typical
• Operating Current:
- 14µA @ 32 kHz, 2.0V, typical
- 120µA @ 1 MHz, 2.0V, typical
• Watchdog Timer Circuit:
- 1µA @ 2.0V, typical
• Timer1 Oscillator Current:
- 3.0µA @ 32 kHz, 2.0V, typical

Special Microcontroller Features
• Power-on Reset (POR)
• Power-up Timer (PWRT) and
Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC
oscillator for reliable operation
• Dual level Brown-out Reset circuitry
- 2.5 VBOR (Typical)
- 4.0 VBOR (Typical)
• Programmable code protection
• Power saving Sleep mode
• Selectable oscillator options
• Fully static design
• In-Circuit Serial Programming (ICSP™)

Peripheral Features:
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler
can be incremented during Sleep via external
crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period
register, prescaler and postscaler
• Enhanced Capture, Compare, PWM module:
-Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM maximum resolution is 10-bit
- Enhanced PWM:
- Single, Half-Bridge and Full-Bridge modes
- Digitally programmable dead-band delay
- Auto-shutdown/restart
• 8-bit multi-channel Analog-to-Digital converter
• 13 I/O pins with individual direction control
• Programmable weak pull-ups on PORTB

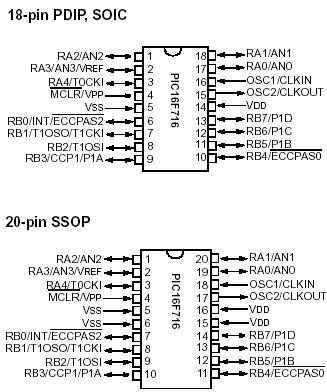

Pinout






Specifications

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	3.5
CPU Speed (MIPS)	5
RAM Bytes	128
Capture/Compare/PWM Peripherals	1 ECCP
Timers	2 x 8-bit, 1 x 16-bit
ADC	4 ch, 8-bit
Temperature Range (C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	18

Ambient temperature under bias.................................................................................................. .-55 to +125
Storage temperature .................................................................................................................... -65 to +150
Voltage on any pin with respect to V_SS (except V_DD, MCLR, and RA4) .................................. -0.3V to (V_DD +0.3V)
Voltage on V_DD with respect to V_SS ............................................................................................... -0.3V to +7.5V
Voltage on MCLR with respect to V_SS (Note 2) ............................................................................... 0V to +13.25V
Voltage on RA4 with respect to Vss .................................................................................................... 0V to +8.5V
Total power dissipation (Note 1) (PDIP and SOIC)........................................................................................ 1.0W
Total power dissipation (Note 1) (SSOP) .....................................................................................................0.65W
Maximum current out of V_SS pin .................................................................................................................300 mA
Maximum current into V_DD pin ....................................................................................................................250 mA
Input clamp current, I_IK (V_I < 0 or V_I > V_DD)..............................................................................................±20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD) ........................................................................................±20 mA
Maximum output current sunk by any I/O pin................................................................................................25 mA
Maximum output current sourced by any I/O pin ..........................................................................................25 mA
Maximum current sunk by PORTA and PORTB (combined)............................................................................200 mA
Maximum current sourced by PORTA and PORTB (combined) ......................................................................200 mA

Note 1: Power dissipation is calculated as follows: Pdis = V_DD x {I_DD - I_OH} + {(V_DD-V_OH) x I_OH}
+ (V_Ol x I_OL)
2: Voltage spikes below VSS at the MCLR/VPP pin, inducing currents greater than 80 mA, may
cause latch-up.Thus, a series resistor of 50-100Ω should be used when applying a "low"
level to the MCLR/VPP pin ratherthan pulling this pin directly to VSS.




Description

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip's powerful PIC? architecture into an 18-pin package and is upwards compatible with the PIC16C5X and PIC12FXXX devices. The PIC16F716 features 4 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers and a enhanced capture/compare/PWM function that make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
